UGC PRE5996026
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.13 CAD - $5.13 CAD
$5.13 CAD
$5.13 CAD - $5.13 CAD
$5.13 CAD

Vendu en lots de : 12

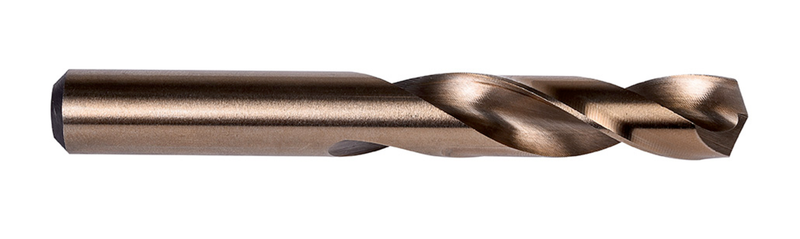

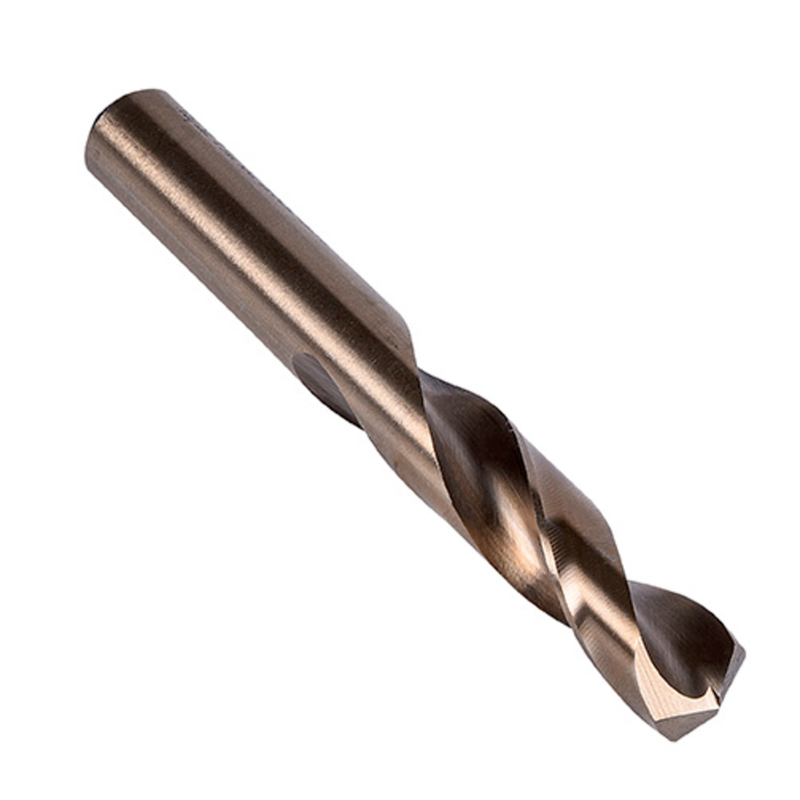

Foret court avec queue cylindrique, diamètre 0,1935" (N10) avec une longueur totale de 2,1/4" et une longueur de coupe de 1,3/16" selon la norme ANSI avec pointe autocentrée à 135°, HSS-E à base de cobalt avec finition bronze pour perçage 2.5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)M41CON10
GradeBronze
Product Number5996026
Product FamilyM41CO
Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number41310
File Type Download
M41CON10 — 3D Model STP Download
M41CON10 — Line Drawing PDF Download
