CO501-6N3
CO501-6N3

CO501-6N3

UGC PRE5996037
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.17 CAD - $11.17 CAD
$11.17 CAD
$11.17 CAD - $11.17 CAD
$11.17 CAD

Vendu en lots de : 12

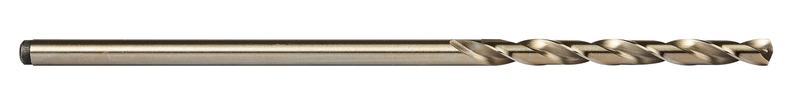

Foret d'aviation à rallonge avec queue droite, diamètre 0,2130" (N3) avec une longueur totale de 6" et une longueur de coupe de 2.1/2" selon la norme NAS907 Type J avec pointe fendue robuste à 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N3
GradeBronze
Product Number5996037
Product FamilyCO501-6
Dimensions
Cutting Diameter — in (DC)0.213"
Cutting Diameter — mm (DC)5.41 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.213"
Connection Dia. — mm (DCON)5.41 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53703
File Type Download
CO501-6N3 — 3D Model STP Download
CO501-6N3 — Line Drawing PDF Download
