CO501-6N11
CO501-6N11

CO501-6N11

UGC PRE5996064
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.33 CAD - $9.33 CAD
$9.33 CAD
$9.33 CAD - $9.33 CAD
$9.33 CAD

Vendu en lots de : 12

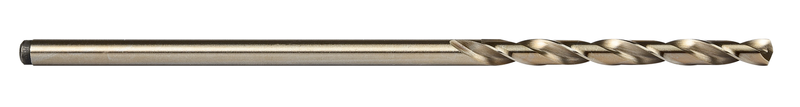

Foret long d'aviation à queue cylindrique, diamètre 0,1910" (N11) avec une longueur totale de 6" et une longueur de coupe de 2.5/16" selon la norme NAS907 Type J avec une pointe fendue robuste à 135°, en HSS-E cobalt avec finition bronze pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N11
GradeBronze
Product Number5996064
Product FamilyCO501-6
Dimensions
Cutting Diameter — in (DC)0.191"
Cutting Diameter — mm (DC)4.85 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.3125"
Flute Length — mm (LCF)58.74 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.191"
Connection Dia. — mm (DCON)4.85 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53711
File Type Download
CO501-6N11 — 3D Model STP Download
CO501-6N11 — Line Drawing PDF Download
