CO501-6N36
CO501-6N36

CO501-6N36

UGC PRE5996067
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.73 CAD - $6.73 CAD
$6.73 CAD
$6.73 CAD - $6.73 CAD
$6.73 CAD

Vendu en lots de : 12

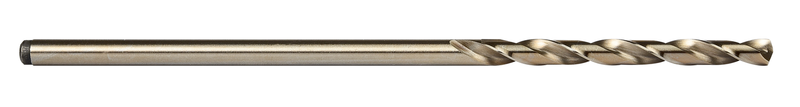

Foret long d'aviation à queue cylindrique, diamètre 0,1065" (N36) d'une longueur totale de 6" et d'une longueur de coupe de 1.7/16" selon la norme NAS907 Type J avec pointe auto-centrante robuste à 135°, en HSS-E cobalt avec finition bronze pour le perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N36
GradeBronze
Product Number5996067
Product FamilyCO501-6
Dimensions
Cutting Diameter — in (DC)0.1065"
Cutting Diameter — mm (DC)2.71 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1065"
Connection Dia. — mm (DCON)2.71 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53736
File Type Download
CO501-6N36 — 3D Model STP Download
CO501-6N36 — Line Drawing PDF Download
