CO501-6N45
CO501-6N45

CO501-6N45

UGC PRE5996104
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.20 CAD - $9.20 CAD
$9.20 CAD
$9.20 CAD - $9.20 CAD
$9.20 CAD

Vendu en lots de : 12

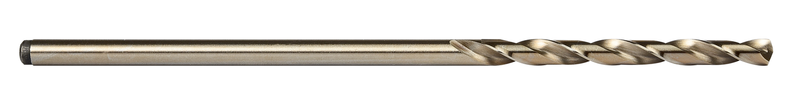

Foret de rallonge aéronautique à queue cylindrique, diamètre 0,0820" (N45), longueur totale de 6" et longueur de coupe de 1,1/8", conforme à la norme NAS907 Type J, avec pointe fendue renforcée à 135°, en HSS-E cobalté avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N45
GradeBronze
Product Number5996104
Product FamilyCO501-6
Dimensions
Cutting Diameter — in (DC)0.082"
Cutting Diameter — mm (DC)2.08 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.082"
Connection Dia. — mm (DCON)2.08 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53745
File Type Download
CO501-6N45 — 3D Model STP Download
CO501-6N45 — Line Drawing PDF Download
