UGC PRE5996183
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.86 CAD - $3.86 CAD
$3.86 CAD
$3.86 CAD - $3.86 CAD
$3.86 CAD

Vendu en lots de : 12

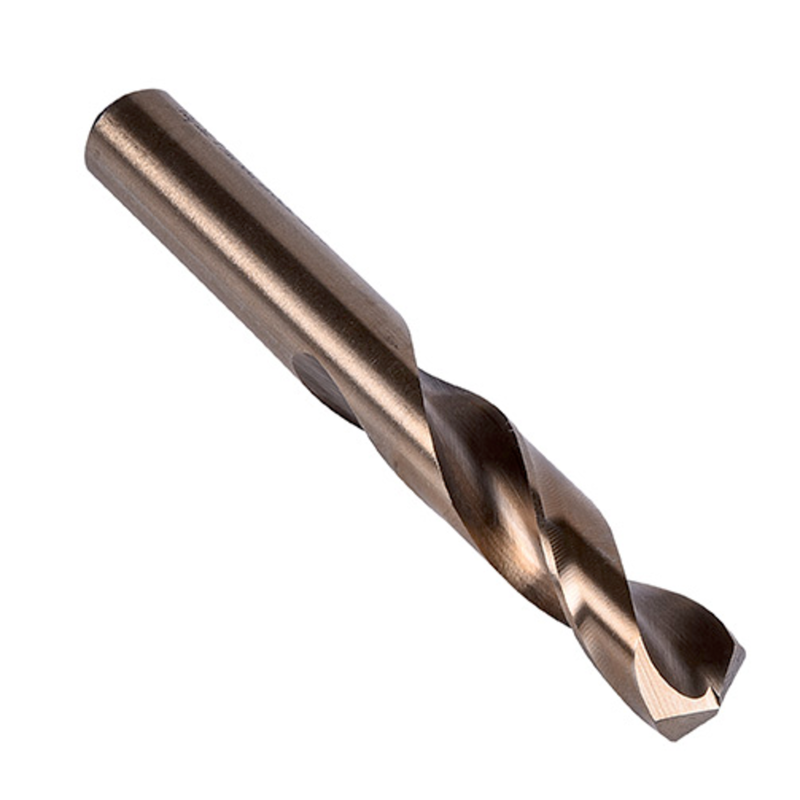

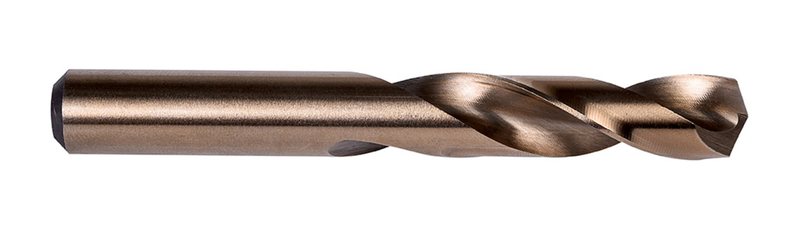

Foret court à queue cylindrique, diamètre 0,1540" (N23) avec une longueur totale de 2.1/16" et une longueur de coupe de 1" selon la norme ANSI avec un affûtage en croix à 135°, en HSS-E cobalté avec finition bronze pour un perçage 2.5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)M41CON23
GradeBronze
Product Number5996183
Product FamilyM41CO
Dimensions
Cutting Diameter — in (DC)0.154"
Cutting Diameter — mm (DC)3.91 mm
Overall Length — in (OAL)2.0625"
Overall Length — mm (OAL)52.39 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.154"
Connection Dia. — mm (DCON)3.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number41323
File Type Download
M41CON23 — 3D Model STP Download
M41CON23 — Line Drawing PDF Download
