CQ1290P23/64
CQ1290P23/64
CQ1290P23/64

CQ1290P23/64

UGC PRE5996429
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.64 CAD - $59.64 CAD
$59.64 CAD
$59.64 CAD - $59.64 CAD
$59.64 CAD

Vendu en lots de : 1

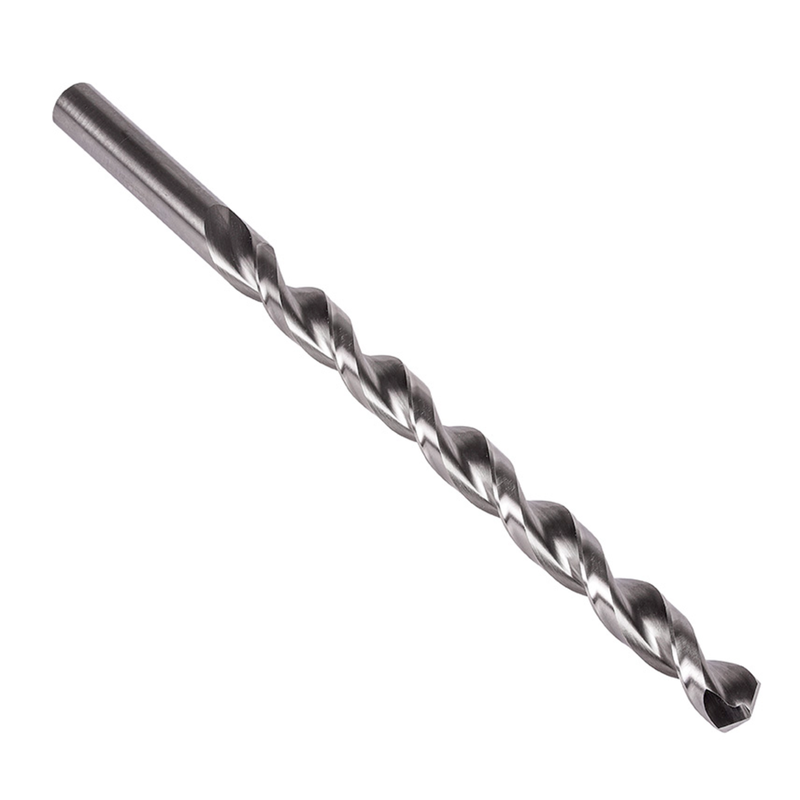

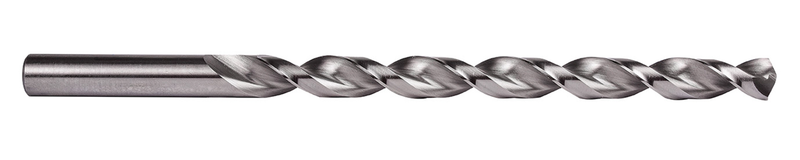

Foret extra-long à queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec une pointe de centrage à 135°, en HSS avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC1290P23/64
GradeLumineux
Product Number5996429
Product FamilyQC1290P

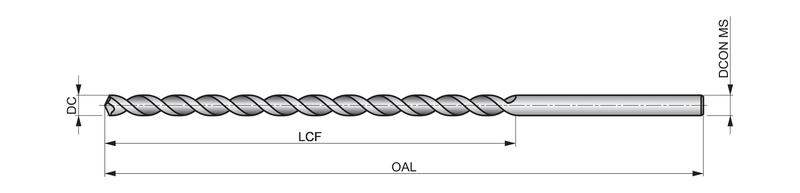

Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60323
File Type Download
CQ1290P23/64 — 3D Model STP Download
CQ1290P23/64 — Line Drawing PDF Download
