QC1290P25/64
QC1290P25/64
QC1290P25/64

QC1290P25/64

UGC PRE5996430
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.50 CAD - $67.50 CAD
$67.50 CAD
$67.50 CAD - $67.50 CAD
$67.50 CAD

Vendu en lots de : 1

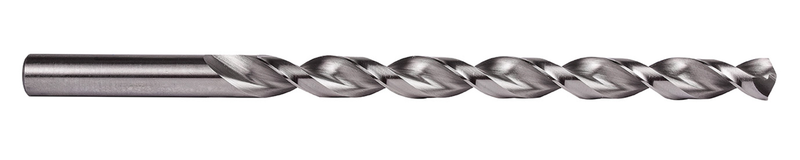

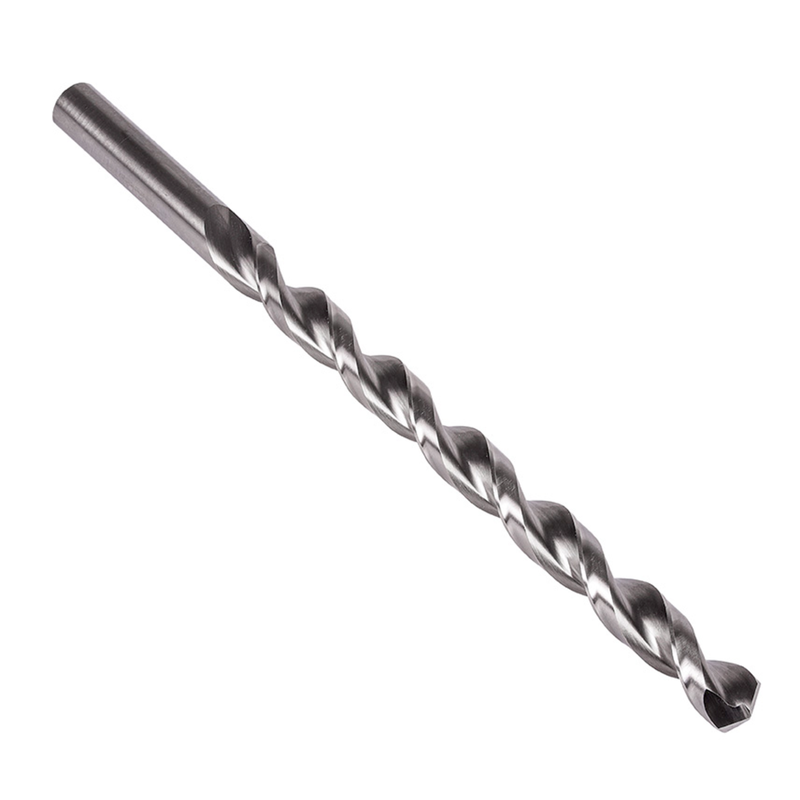

Foret extra-long à queue cylindrique, diamètre 0,3906" (25/64) avec une longueur totale de 12" et une longueur utile de 9" selon la norme ANSI, avec pointe en croix à 135°, en HSS avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC1290P25/64
GradeLumineux
Product Number5996430
Product FamilyCQ1290P
Dimensions
Cutting Diameter — in (DC)0.3906"
Cutting Diameter — mm (DC)9.92 mm
Cutting Diameter — Fractional25/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.3906"
Connection Dia. — mm (DCON)9.92 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60325
File Type Download
QC1290P25/64 — 3D Model STP Download

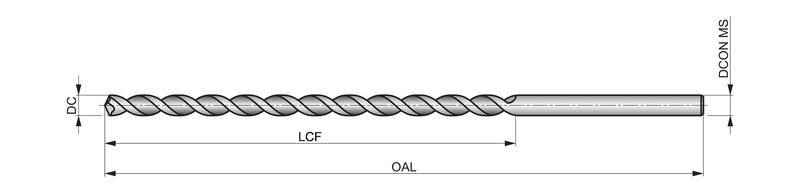

QC1290P25/64 — Line Drawing PDF Download
