CQ1290P3/16
CQ1290P3/16
CQ1290P3/16

CQ1290P3/16

UGC PRE5996441
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.29 CAD - $35.29 CAD
$35.29 CAD
$35.29 CAD - $35.29 CAD
$35.29 CAD

Vendu en lots de : 1

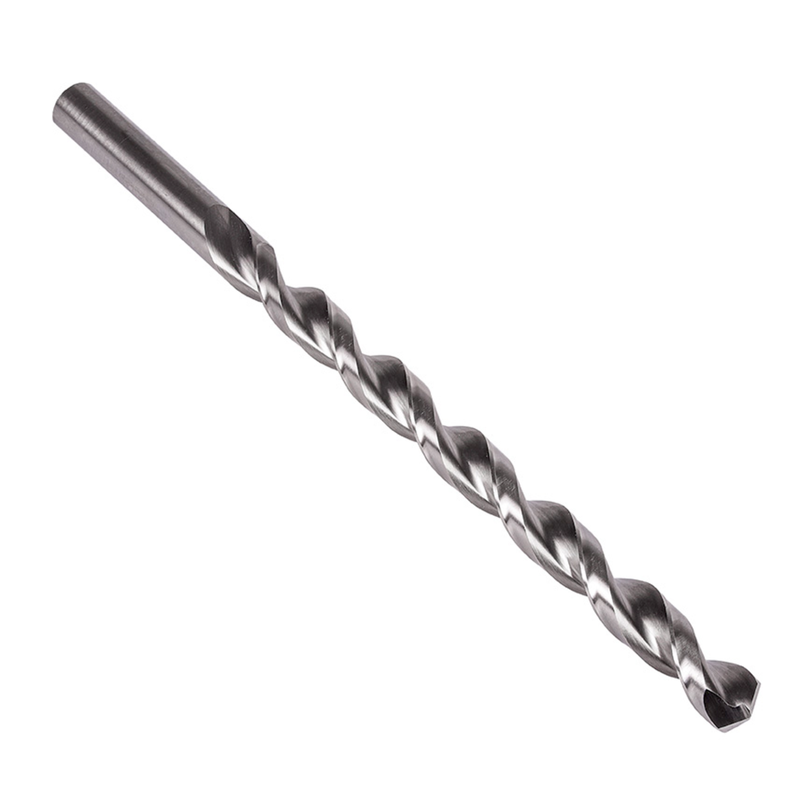

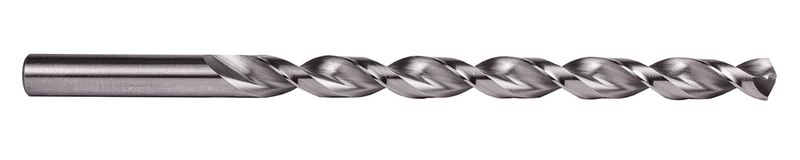

Foret extra-long à queue droite, diamètre 0,1875" (3/16) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI, avec pointe à 135° en croix, HSS avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC1290P3/16
GradeLumineux
Product Number5996441
Product FamilyQC1290P

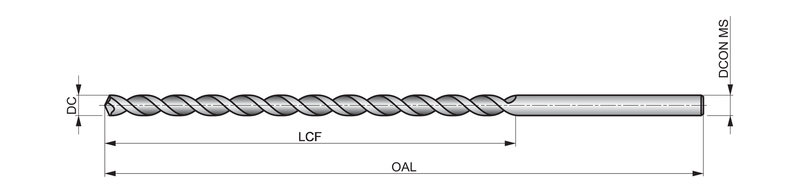

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60312
File Type Download
CQ1290P3/16 — 3D Model STP Download
CQ1290P3/16 — Line Drawing PDF Download
