QC1290P11/32
QC1290P11/32
QC1290P11/32

QC1290P11/32

UGC PRE5996476
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.71 CAD - $55.71 CAD
$55.71 CAD
$55.71 CAD - $55.71 CAD
$55.71 CAD

Vendu en lots de : 1

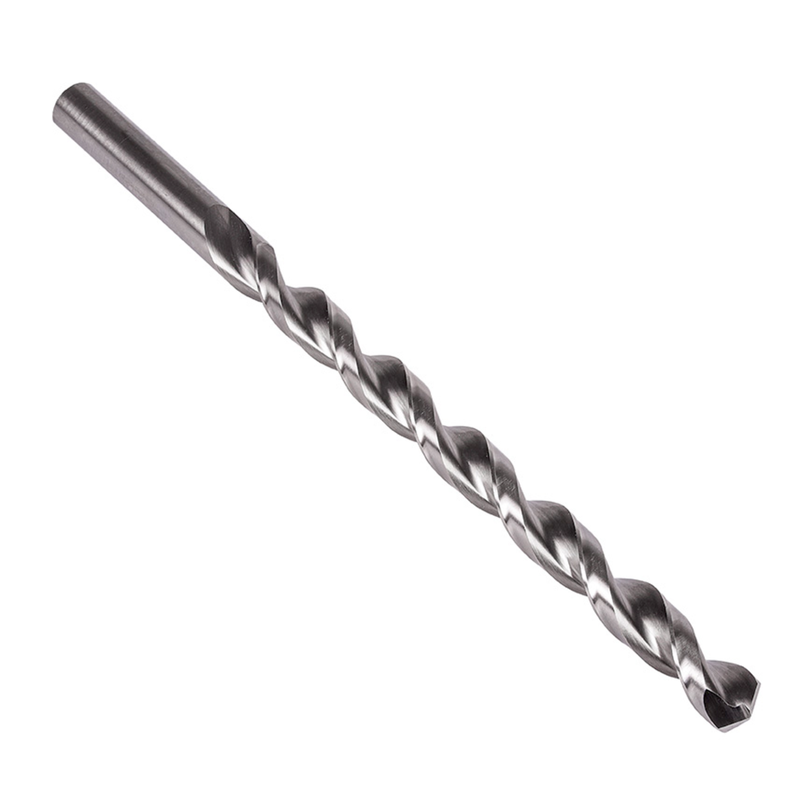

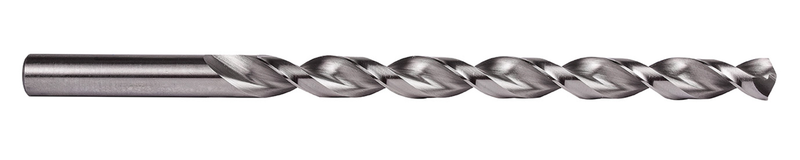

Foret extra-long à queue cylindrique, diamètre 0,3438" (11/32) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec une pointe fendue de 135°, en acier rapide avec finition brillante et âme parabolique pour percer 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ1290P11/32
Product Name (ISO)QC1290P11/32
GradeLumineux
Product Number5996476
Product FamilyCQ1290P
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60322
File Type Download
QC1290P11/32 — 3D Model STP Download

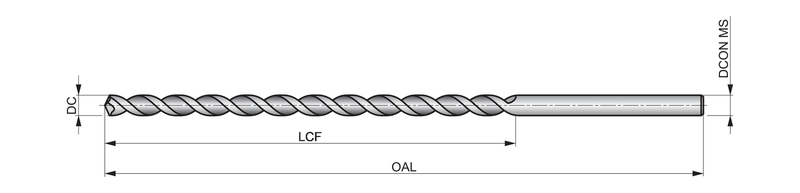

QC1290P11/32 — Line Drawing PDF Download
