UGC PRE5996489
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.13 CAD - $5.13 CAD
$5.13 CAD
$5.13 CAD - $5.13 CAD
$5.13 CAD

Vendu en lots de : 12

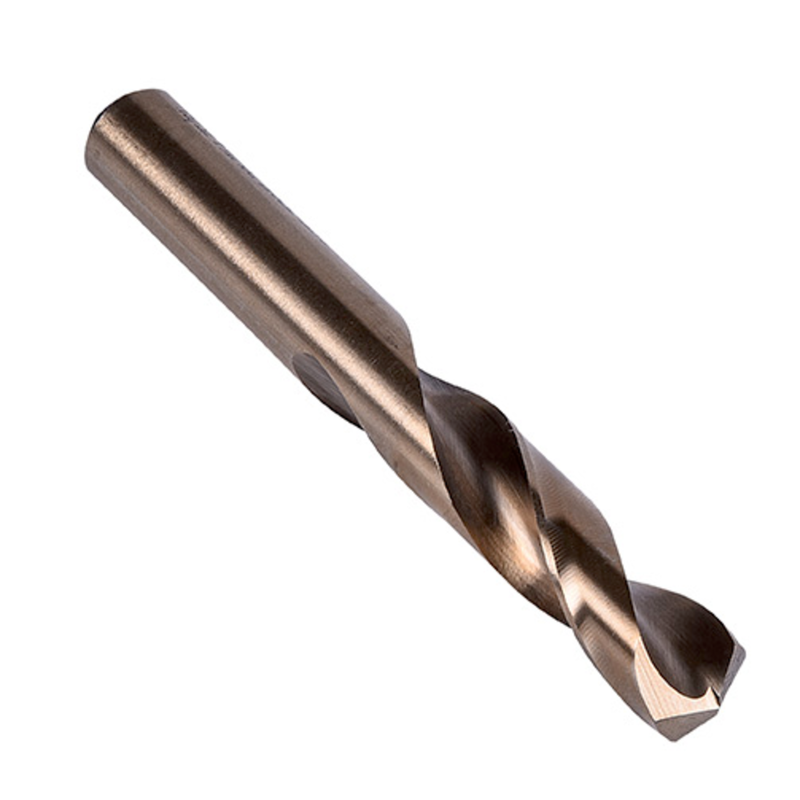

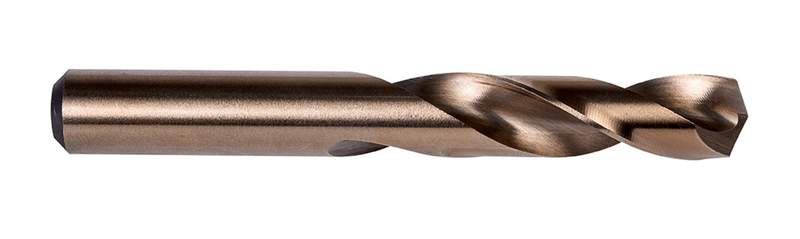

Foret court à queue cylindrique, diamètre 0,1960" (N9), longueur totale 2,1/4" et longueur de coupe 1,3/16", conforme à la norme ANSI, pointe à 135° auto-centrante, en HSS-E cobalté avec finition bronze pour perçage 2.5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)M41CON9
GradeBronze
Product Number5996489
Product FamilyM41CO
Dimensions
Cutting Diameter — in (DC)0.196"
Cutting Diameter — mm (DC)4.98 mm
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.196"
Connection Dia. — mm (DCON)4.98 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number41309
File Type Download
M41CON9 — 3D Model STP Download
M41CON9 — Line Drawing PDF Download
