QC1290P15/64
QC1290P15/64
QC1290P15/64

QC1290P15/64

UGC PRE5996558
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.43 CAD - $41.43 CAD
$41.43 CAD
$41.43 CAD - $41.43 CAD
$41.43 CAD

Vendu en lots de : 1

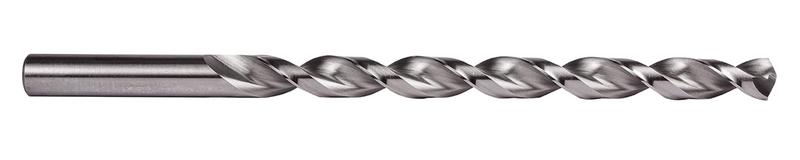

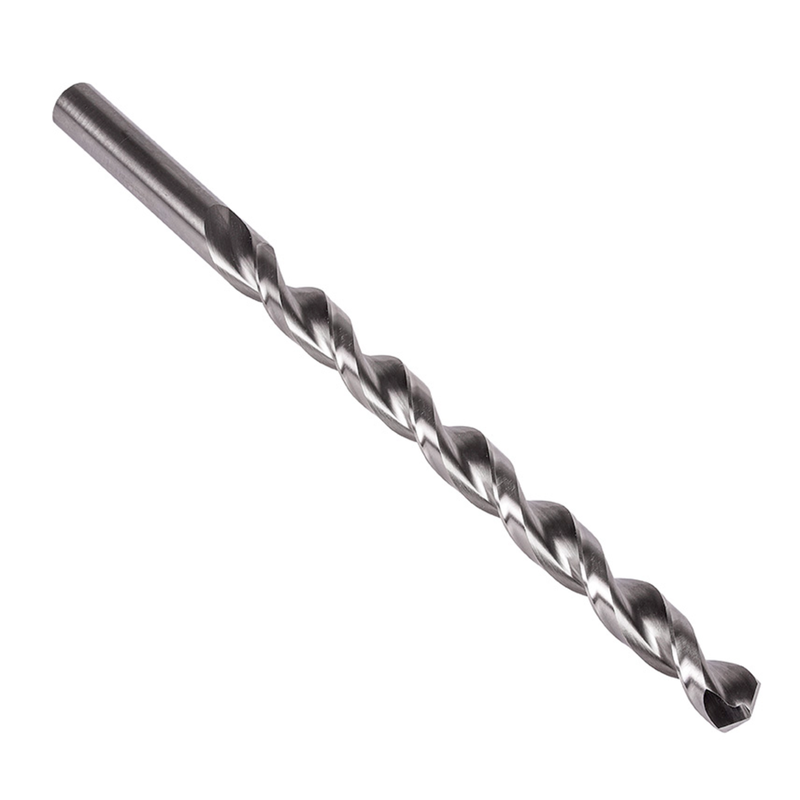

Foret de très longue longueur à queue droite, diamètre 0,2344" (15/64) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec une pointe à 135° auto-centrante, en HSS avec finition brillante et âme parabolique pour un perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC1290P15/64
GradeLumineux
Product Number5996558
Product FamilyCQ1290P

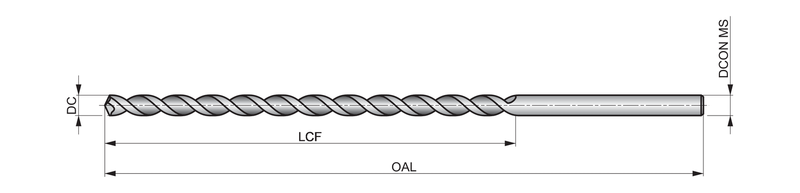

Dimensions
Cutting Diameter — in (DC)0.2344"
Cutting Diameter — mm (DC)5.95 mm
Cutting Diameter — Fractional15/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.2344"
Connection Dia. — mm (DCON)5.95 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60315
File Type Download
QC1290P15/64 — 3D Model STP Download
QC1290P15/64 — Line Drawing PDF Download
