QC21PL
QC21PL
QC21PL

QC21PL

UGC PRE5996566
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.13 CAD - $10.13 CAD
$10.13 CAD
$10.13 CAD - $10.13 CAD
$10.13 CAD

Vendu en lots de : 12

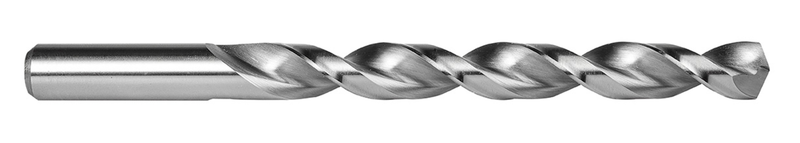

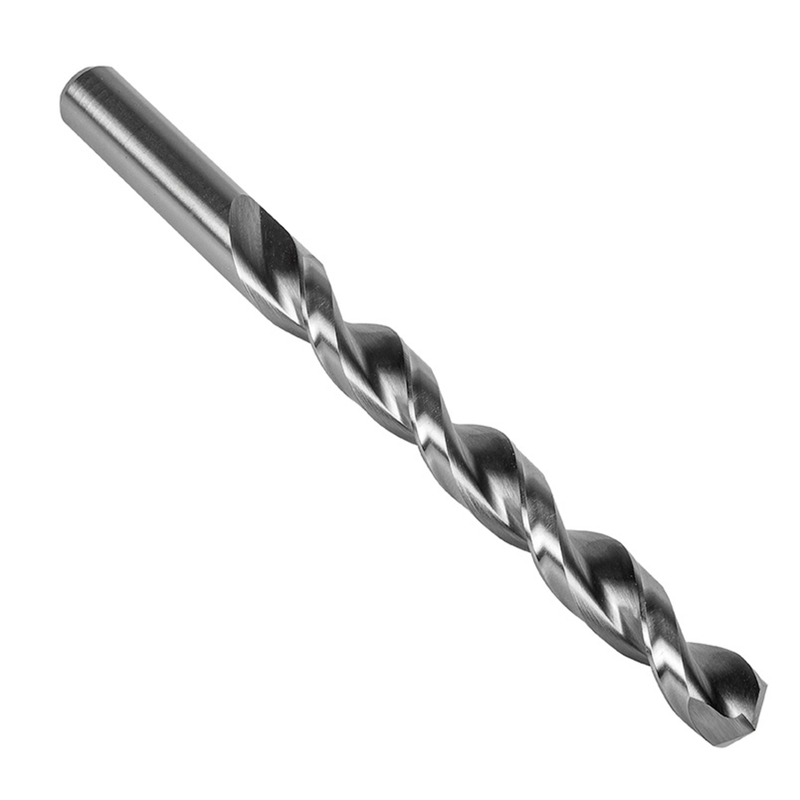

Foret hélice normale, queue cylindrique, diamètre 0,2900" (L) avec une longueur totale de 4,1/4" et une longueur de coupe de 2,15/16" selon la norme ANSI avec pointe autocentrée 135°, en HSS avec finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC21PL
GradeLumineux
Product Number5996566
Product FamilyCQ21P
Dimensions
Cutting Diameter — in (DC)0.29"
Cutting Diameter — mm (DC)7.37 mm
Overall Length — in (OAL)4.25"
Overall Length — mm (OAL)107.95 mm
Flute Length — in (LCF)2.9375"
Flute Length — mm (LCF)74.61 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.29"
Connection Dia. — mm (DCON)7.37 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number19312
File Type Download
QC21PL — 3D Model STP Download
QC21PL — Line Drawing PDF Download
