M51CO11/16
M51CO11/16
M51CO11/16

M51CO11/16

UGC PRE5996580
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.39 CAD - $108.39 CAD
$108.39 CAD
$108.39 CAD - $108.39 CAD
$108.39 CAD

Vendu en lots de : 1

Foret série longue avec queue cylindrique, diamètre 0,6875" (11/16) avec une longueur totale de 9,1/4" et une longueur de coupe de 5,3/8" selon la norme ANSI avec une pointe à 135° auto-centrante, HSS-E à base de cobalt avec finition bronze pour le perçage à 6xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)M51CO11/16
GradeBronze
Product Number5996580
Product FamilyM51CO
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)9.25"
Overall Length — mm (OAL)234.95 mm
Flute Length — in (LCF)5.375"
Flute Length — mm (LCF)136.53 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.6875"
Connection Dia. — mm (DCON)17.46 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51344
File Type Download
M51CO11/16 — 3D Model STP Download

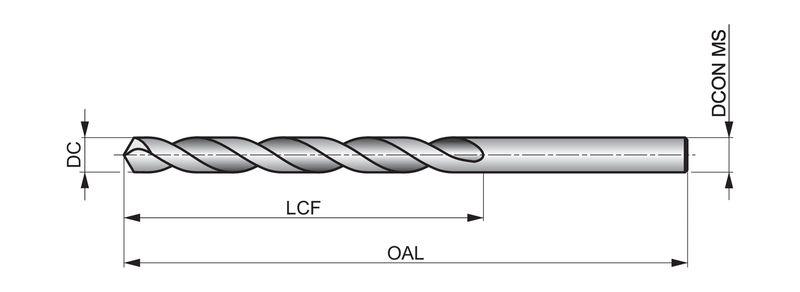

M51CO11/16 — Line Drawing PDF Download
