CQ21PM11.0
CQ21PM11.0
CQ21PM11.0

CQ21PM11.0

UGC PRE5996585
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.19 CAD - $20.19 CAD
$20.19 CAD
$20.19 CAD - $20.19 CAD
$20.19 CAD

Vendu en lots de : 6

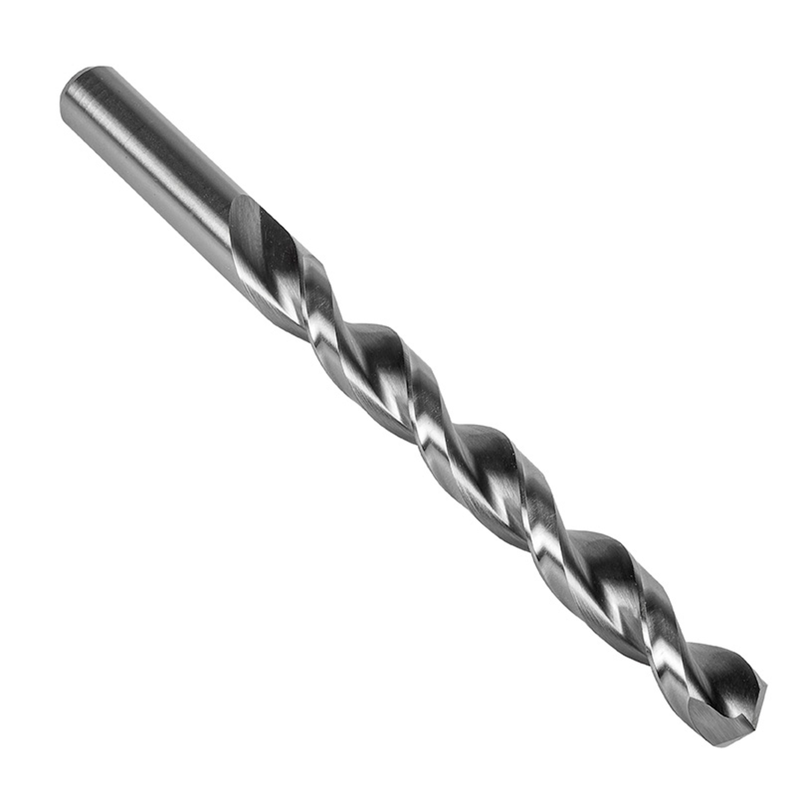

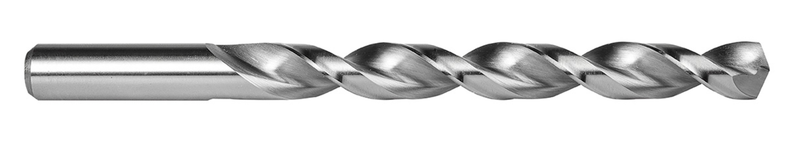

Foret à queue cylindrique, longueur standard, diamètre 11mm avec une longueur totale de 142mm et une longueur de coupe de 94mm selon la norme DIN 338 avec une pointe à 135° auto-centrante, HSS avec finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)QC21PM11.0
Product Name (ISO)CQ21PM11.0
GradeLumineux
Product Number5996585
Product FamilyCQ21PM
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number14910
File Type Download
CQ21PM11.0 — 3D Model STP Download
CQ21PM11.0 — Line Drawing PDF Download
