CQ21PM16.5
CQ21PM16.5
CQ21PM16.5

CQ21PM16.5

UGC PRE5996631
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.29 CAD - $54.29 CAD
$54.29 CAD
$54.29 CAD - $54.29 CAD
$54.29 CAD

Vendu en lots de : 1

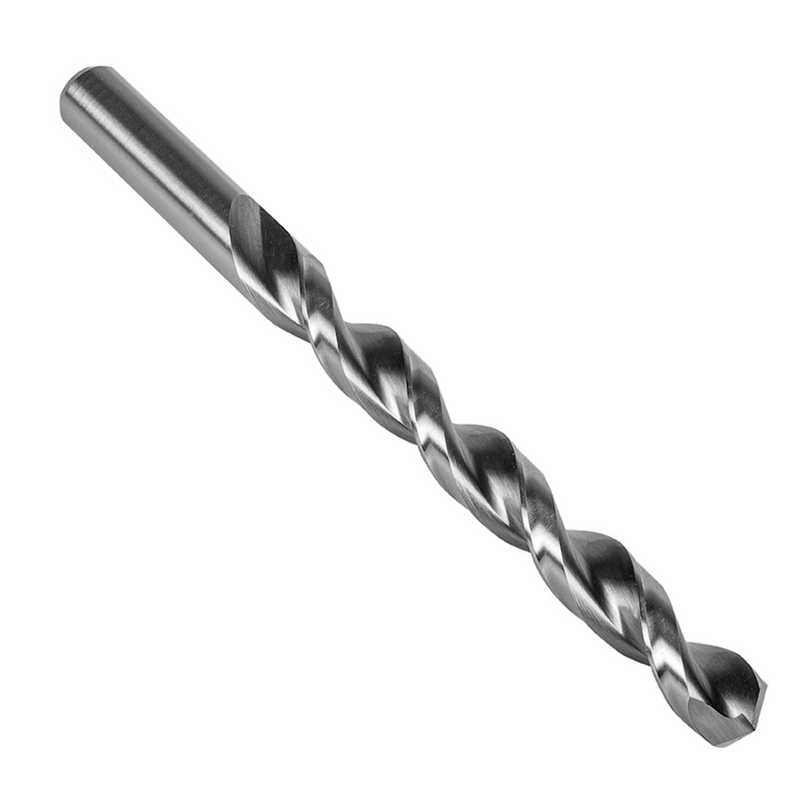

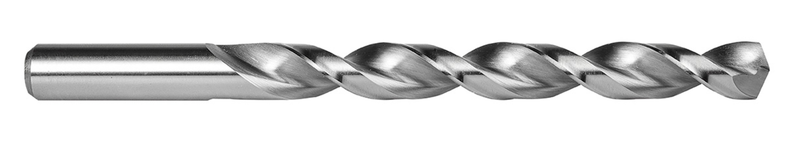

Foret hél. courte avec queue cylindrique, diamètre 16,5mm, longueur totale 184mm et longueur de coupe 125mm selon DIN 338, pointe auto-centrante 135°, HSS finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non-ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CQ21PM16.5
GradeLumineux
Product Number5996631
Product FamilyCQ21PM
Dimensions
Cutting Diameter — in (DC)0.6496"
Cutting Diameter — mm (DC)16.5 mm
Overall Length — in (OAL)7.2441"
Overall Length — mm (OAL)184.0 mm
Flute Length — in (LCF)4.9213"
Flute Length — mm (LCF)125.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.6496"
Connection Dia. — mm (DCON)16.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number14965
File Type Download
CQ21PM16.5 — 3D Model STP Download
CQ21PM16.5 — Line Drawing PDF Download
