QC21PN20
QC21PN20
QC21PN20

QC21PN20

UGC PRE5996980
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.26 CAD - $4.26 CAD
$4.26 CAD
$4.26 CAD - $4.26 CAD
$4.26 CAD

Vendu en lots de : 12

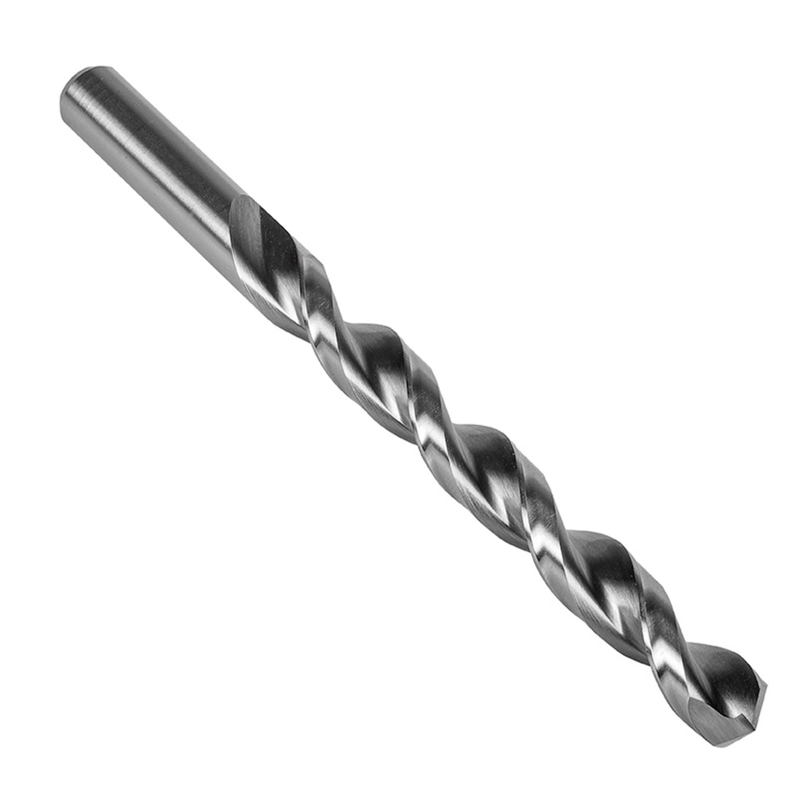

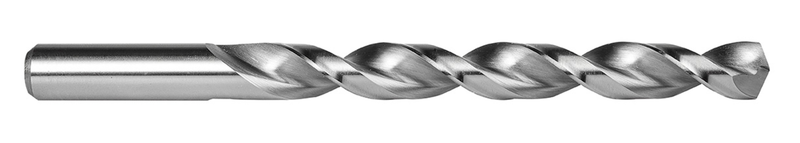

Foret hélicoïdal série courte avec queue cylindrique, diamètre 0,1610" (N20) avec une longueur totale de 3,1/4" et une longueur de coupe de 2,1/8" selon la norme ANSI avec une pointe auto-centrante de 135°, en HSS avec finition brillante et âme parabolique pour un perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CQ21PN20
GradeLumineux
Product Number5996980
Product FamilyCQ21P
Dimensions
Cutting Diameter — in (DC)0.161"
Cutting Diameter — mm (DC)4.09 mm
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.161"
Connection Dia. — mm (DCON)4.09 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number19420
File Type Download
QC21PN20 — 3D Model STP Download
QC21PN20 — Line Drawing PDF Download
