QC21PM6.0
QC21PM6.0
QC21PM6.0

QC21PM6.0

UGC PRE5997052
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.86 CAD - $6.86 CAD
$6.86 CAD
$6.86 CAD - $6.86 CAD
$6.86 CAD

Vendu en lots de : 12

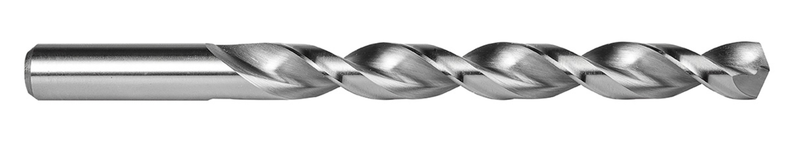

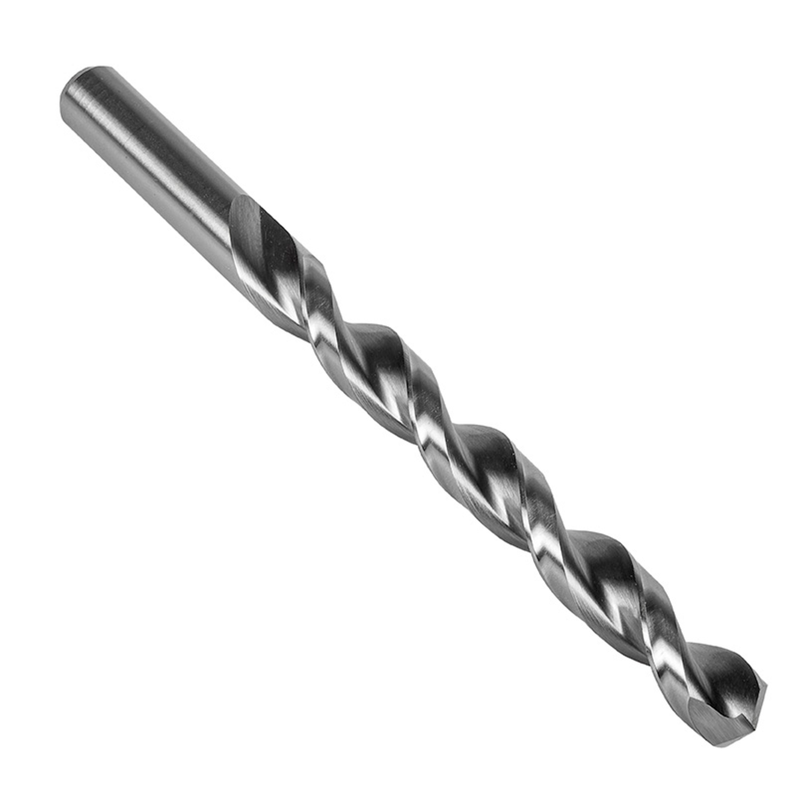

Foret court avec queue cylindrique, diamètre 6 mm, longueur totale 93 mm et longueur de coupe 57 mm, conforme à la norme DIN 338, avec une pointe en croix à 135°, en acier rapide (HSS) avec finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CQ21PM6.0
GradeLumineux
Product Number5997052
Product FamilyCQ21PM
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number13160
File Type Download
QC21PM6.0 — 3D Model STP Download
QC21PM6.0 — Line Drawing PDF Download
