QC21PS
QC21PS
QC21PS

QC21PS

UGC PRE5997059
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.26 CAD - $15.26 CAD
$15.26 CAD
$15.26 CAD - $15.26 CAD
$15.26 CAD

Vendu en lots de : 6

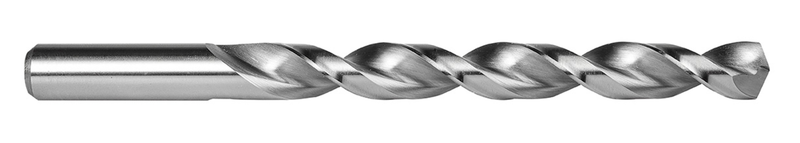

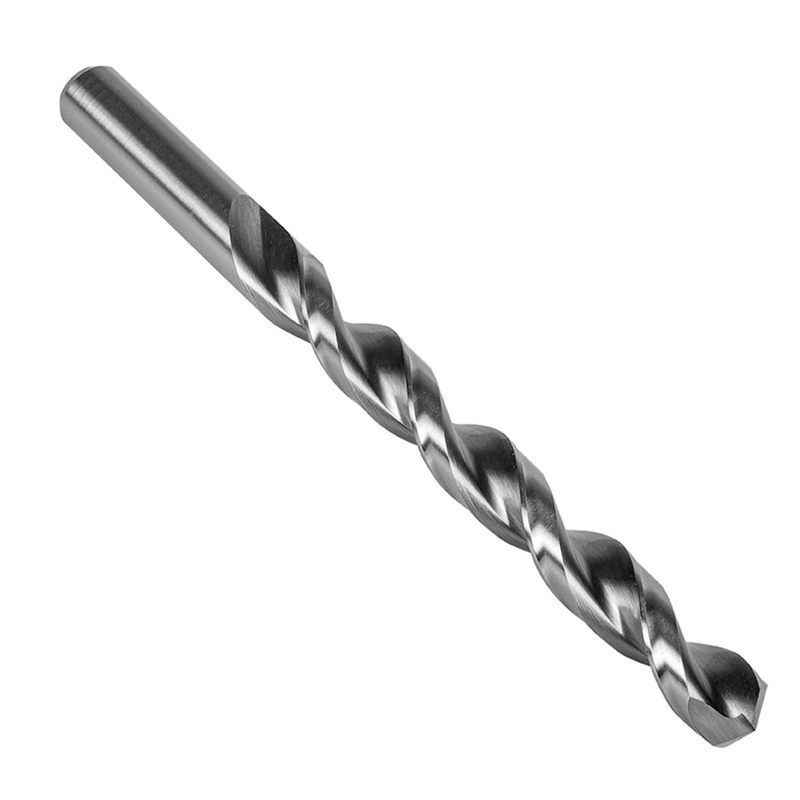

Foret de longueur jobber avec queue droite, diamètre 0,3480" (S) avec une longueur totale de 4.7/8" et une longueur de goujure de 3.1/2" selon la norme ANSI avec pointe autocentrée de 135°, HSS avec finition brillante et âme parabolique pour un perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CQ21PS
GradeLumineux
Product Number5997059
Product FamilyQC21P
Dimensions
Cutting Diameter — in (DC)0.348"
Cutting Diameter — mm (DC)8.84 mm
Overall Length — in (OAL)4.875"
Overall Length — mm (OAL)123.83 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.348"
Connection Dia. — mm (DCON)8.84 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number19319
File Type Download
QC21PS — 3D Model STP Download
QC21PS — Line Drawing PDF Download
