CQ21PT
CQ21PT
CQ21PT

CQ21PT

UGC PRE5997062
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.47 CAD - $15.47 CAD
$15.47 CAD
$15.47 CAD - $15.47 CAD
$15.47 CAD

Vendu en lots de : 6

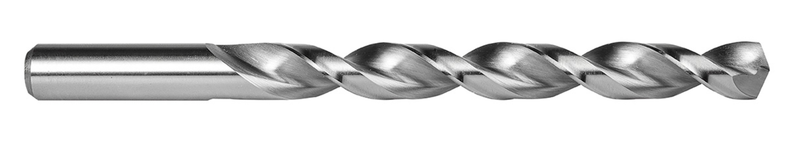

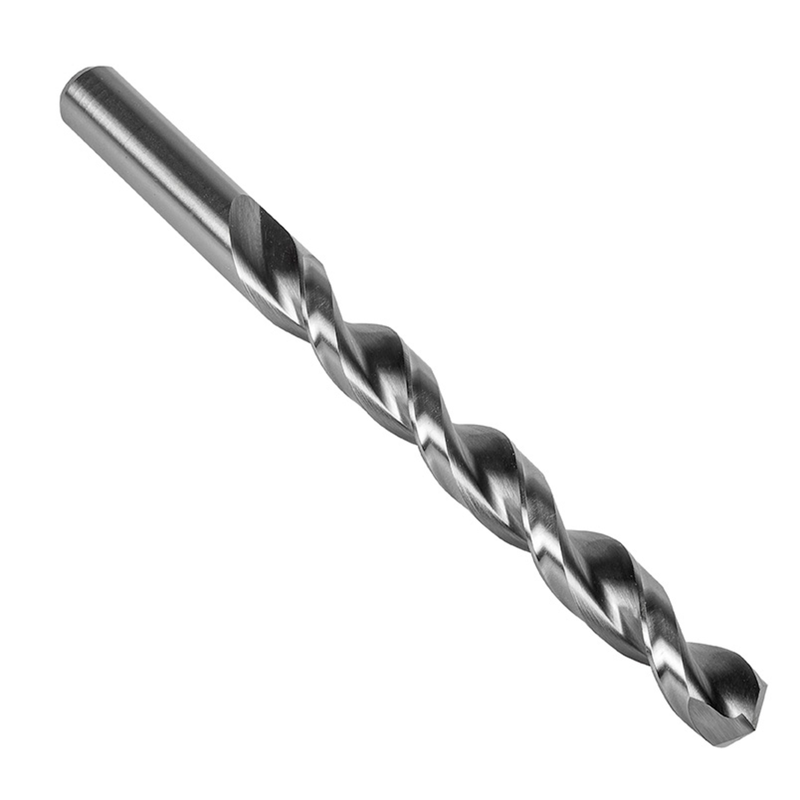

Foret jobber avec queue droite, diamètre 0,3580" (T) avec une longueur totale de 4.7/8" et une longueur de coupe de 3.1/2" selon la norme ANSI, avec pointe autocentrante de 135°, en acier rapide avec finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ21PT
Product Name (ISO)QC21PT
GradeLumineux
Product Number5997062
Product FamilyCQ21P
Dimensions
Cutting Diameter — in (DC)0.358"
Cutting Diameter — mm (DC)9.09 mm
Overall Length — in (OAL)4.875"
Overall Length — mm (OAL)123.83 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.358"
Connection Dia. — mm (DCON)9.09 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number19320
File Type Download
CQ21PT — 3D Model STP Download
CQ21PT — Line Drawing PDF Download
