CQ21P1/4
CQ21P1/4
CQ21P1/4

CQ21P1/4

UGC PRE5997093
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.66 CAD - $6.66 CAD
$6.66 CAD
$6.66 CAD - $6.66 CAD
$6.66 CAD

Vendu en lots de : 12

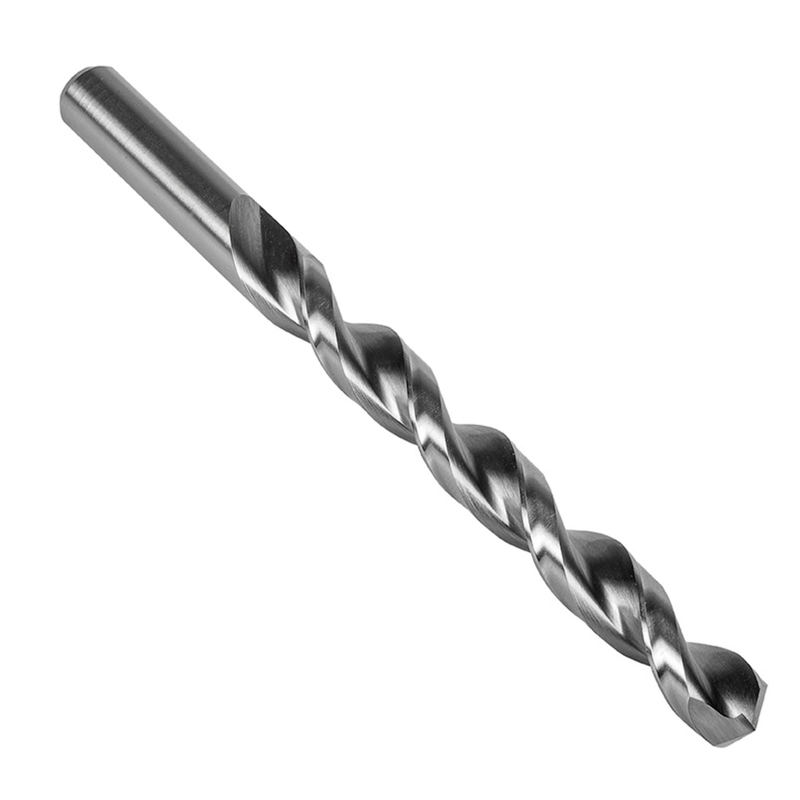

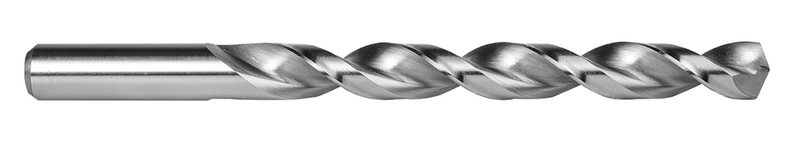

Foret jobber à queue cylindrique, diamètre 0,2500" (1/4) avec une longueur totale de 4" et une longueur de coupe de 2,3/4" selon la norme ANSI avec une pointe fendue de 135°, en HSS avec finition brillante et âme parabolique pour un perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC21P1/4
GradeLumineux
Product Number5997093
Product FamilyCQ21P
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number15816
File Type Download
CQ21P1/4 — 3D Model STP Download
CQ21P1/4 — Line Drawing PDF Download
