QC21P19/32
QC21P19/32
QC21P19/32

QC21P19/32

UGC PRE5997141
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.50 CAD - $47.50 CAD
$47.50 CAD
$47.50 CAD - $47.50 CAD
$47.50 CAD

Vendu en lots de : 1

Foret de longueur jobber à queue cylindrique, diamètre 0,5938" (19/32) avec une longueur totale de 7.1/8" et une longueur de coupe de 5.3/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition brillante et âme parabolique pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC21P19/32
GradeLumineux
Product Number5997141
Product FamilyQC21P

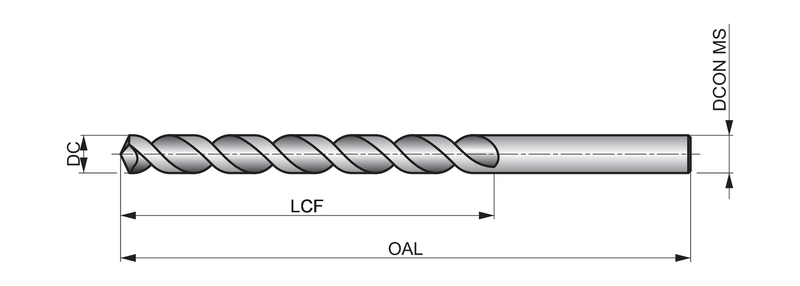

Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)7.125"
Overall Length — mm (OAL)180.98 mm
Flute Length — in (LCF)5.1875"
Flute Length — mm (LCF)131.76 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5938"
Connection Dia. — mm (DCON)15.08 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number15838
File Type Download
QC21P19/32 — 3D Model STP Download
QC21P19/32 — Line Drawing PDF Download
