QC41PN18
QC41PN18
QC41PN18

QC41PN18

UGC PRE5997163
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.07 CAD - $4.07 CAD
$4.07 CAD
$4.07 CAD - $4.07 CAD
$4.07 CAD

Vendu en lots de : 12

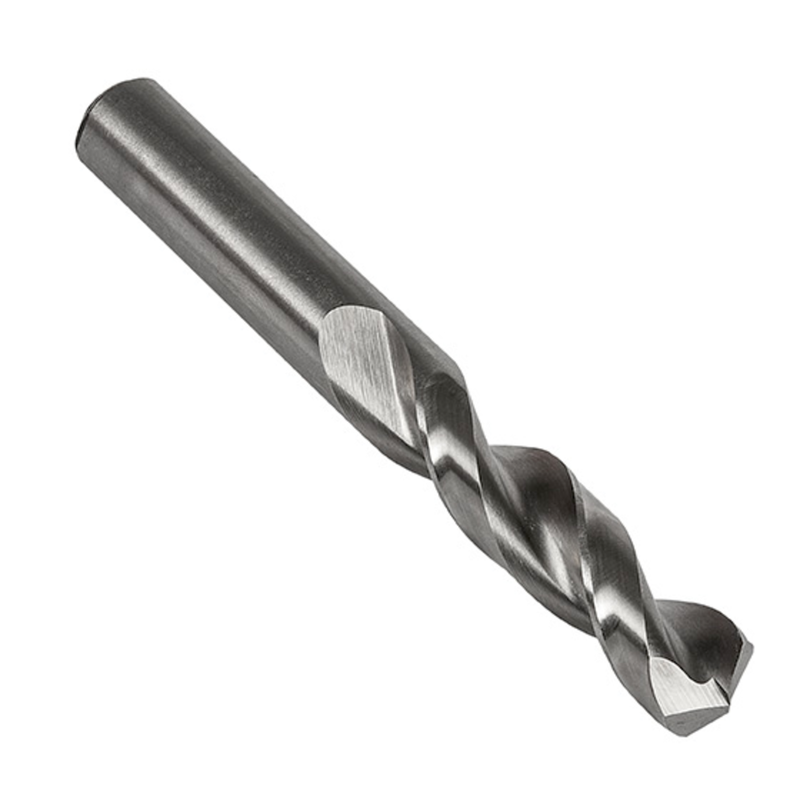

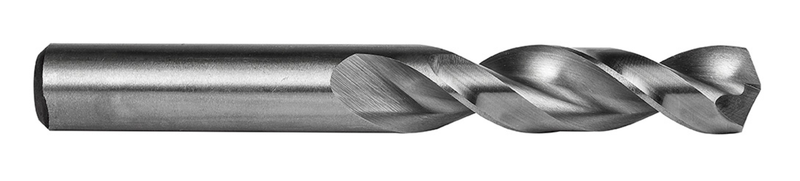

Foret court à queue cylindrique, diamètre 0,1695" (N18) avec une longueur totale de 2.1/8" et une longueur de goujure de 1.1/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS finition brillante et âme parabolique pour perçage 3xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41PN18
GradeLumineux
Product Number5997163
Product FamilyQC41P
Dimensions
Cutting Diameter — in (DC)0.1695"
Cutting Diameter — mm (DC)4.31 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)1.0625"
Flute Length — mm (LCF)26.99 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1695"
Connection Dia. — mm (DCON)4.31 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60018
File Type Download
QC41PN18 — 3D Model STP Download
QC41PN18 — Line Drawing PDF Download
