QC91PN7
QC91PN7
QC91PN7

QC91PN7

UGC PRE5997177
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.07 CAD - $20.07 CAD
$20.07 CAD
$20.07 CAD - $20.07 CAD
$20.07 CAD

Vendu en lots de : 12

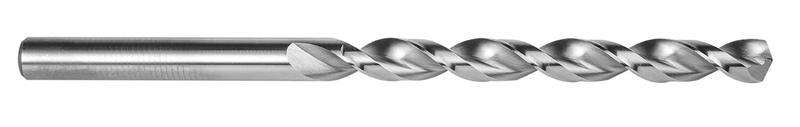

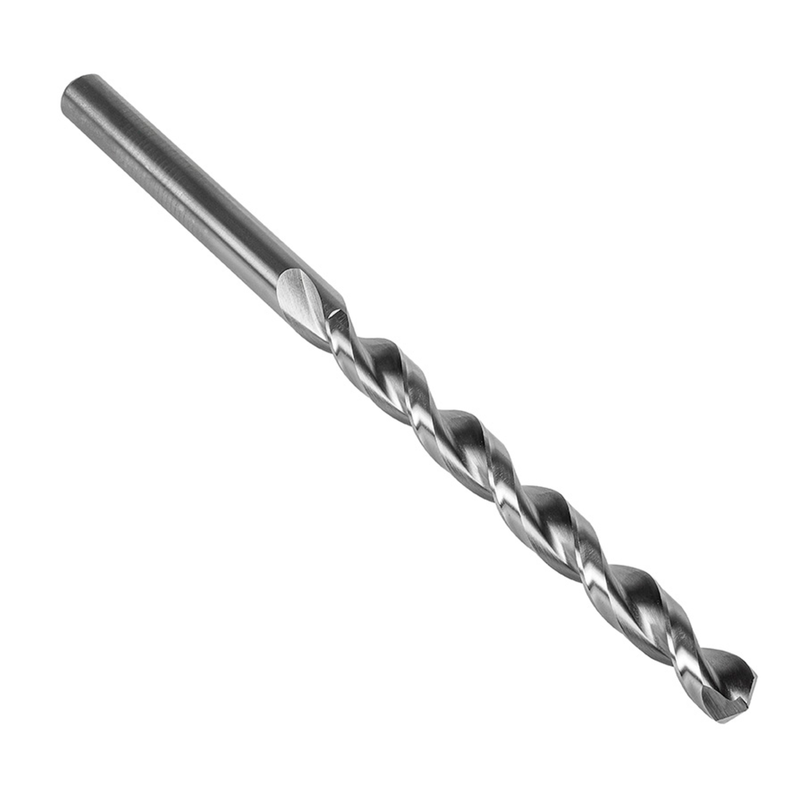

Foret série longue à queue droite, diamètre 0,2010" (N7) avec une longueur totale de 6" et une longueur de goujure de 3,5/8" selon la norme ANSI avec une pointe de centrage à 135°, en HSS avec finition brillante et âme parabolique pour percer 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC91PN7
GradeLumineux
Product Number5997177
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.201"
Cutting Diameter — mm (DC)5.11 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.201"
Connection Dia. — mm (DCON)5.11 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59407
File Type Download
QC91PN7 — 3D Model STP Download
QC91PN7 — Line Drawing PDF Download
