UGC PRE5997219
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.79 CAD - $106.79 CAD
$106.79 CAD
$106.79 CAD - $106.79 CAD
$106.79 CAD

Vendu en lots de : 1

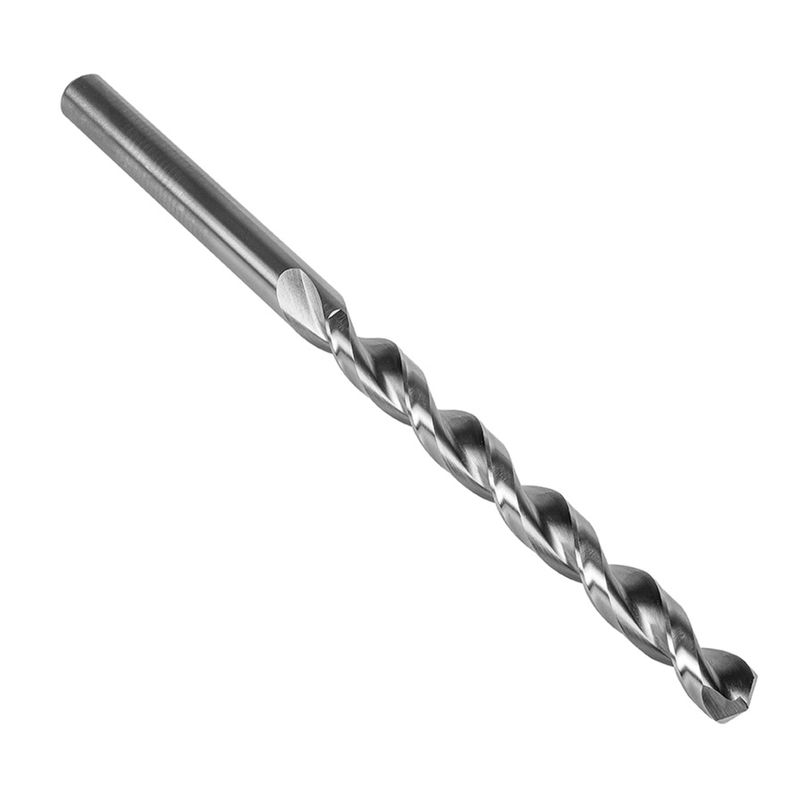

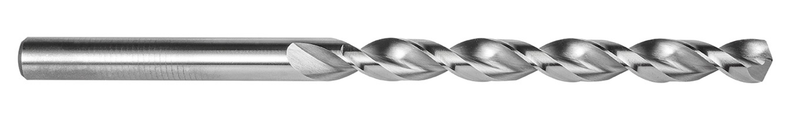

Foret série longue avec queue cylindrique, diamètre 0,5313" (17/32) avec une longueur totale de 8" et une longueur de coupe de 4,3/4" selon la norme ANSI avec une pointe à 135° auto-centrante, HSS avec finition brillante et âme parabolique pour un perçage à 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)QC91P17/32
Product Name (ISO)CQ91P17/32
GradeLumineux
Product Number5997219
Product FamilyCQ91P
Dimensions
Cutting Diameter — in (DC)0.5313"
Cutting Diameter — mm (DC)13.5 mm
Cutting Diameter — Fractional17/32
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)4.75"
Flute Length — mm (LCF)120.65 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.5313"
Connection Dia. — mm (DCON)13.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number57934
File Type Download
QC91P17/32 — 3D Model STP Download
QC91P17/32 — Line Drawing PDF Download
