QC41PN10
QC41PN10
QC41PN10

QC41PN10

UGC PRE5997222
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.07 CAD - $5.07 CAD
$5.07 CAD
$5.07 CAD - $5.07 CAD
$5.07 CAD

Vendu en lots de : 12

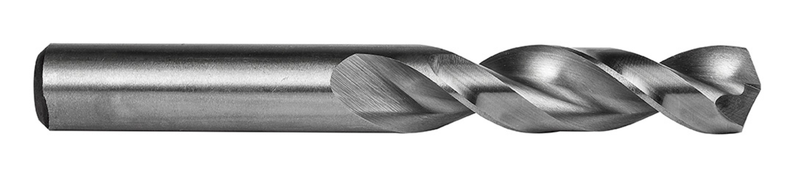

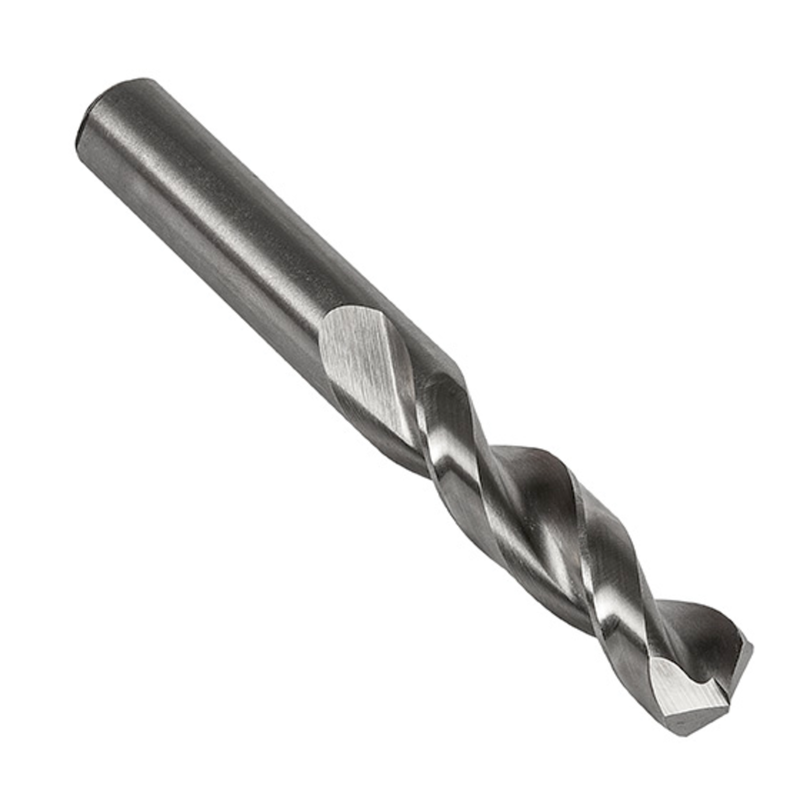

Foret court à queue droite, diamètre 0,1935" (N10), longueur totale de 2,1/4" et longueur de coupe de 1,3/16" selon la norme ANSI, avec pointe autocentrante à 135°, en HSS, finition brillante et âme parabolique pour percer 3xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41PN10
GradeLumineux
Product Number5997222
Product FamilyCQ41P

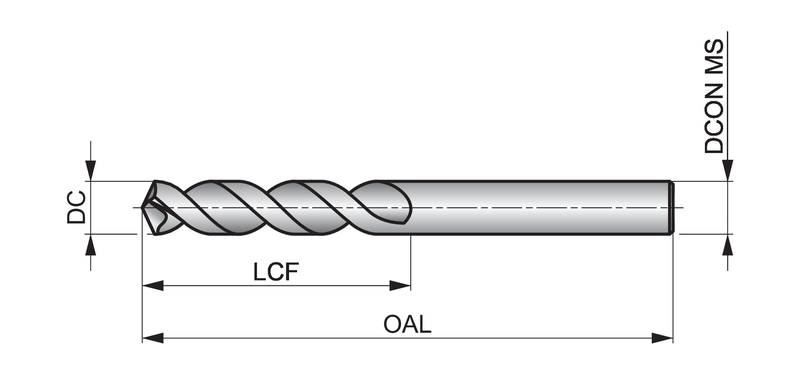

Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60010
File Type Download
QC41PN10 — 3D Model STP Download
QC41PN10 — Line Drawing PDF Download
