QC41PN36
QC41PN36
QC41PN36

QC41PN36

UGC PRE5997226
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.56 CAD - $3.56 CAD
$3.56 CAD
$3.56 CAD - $3.56 CAD
$3.56 CAD

Vendu en lots de : 12

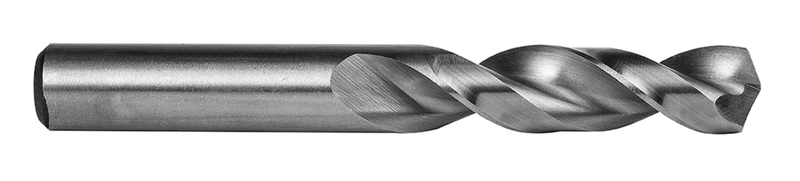

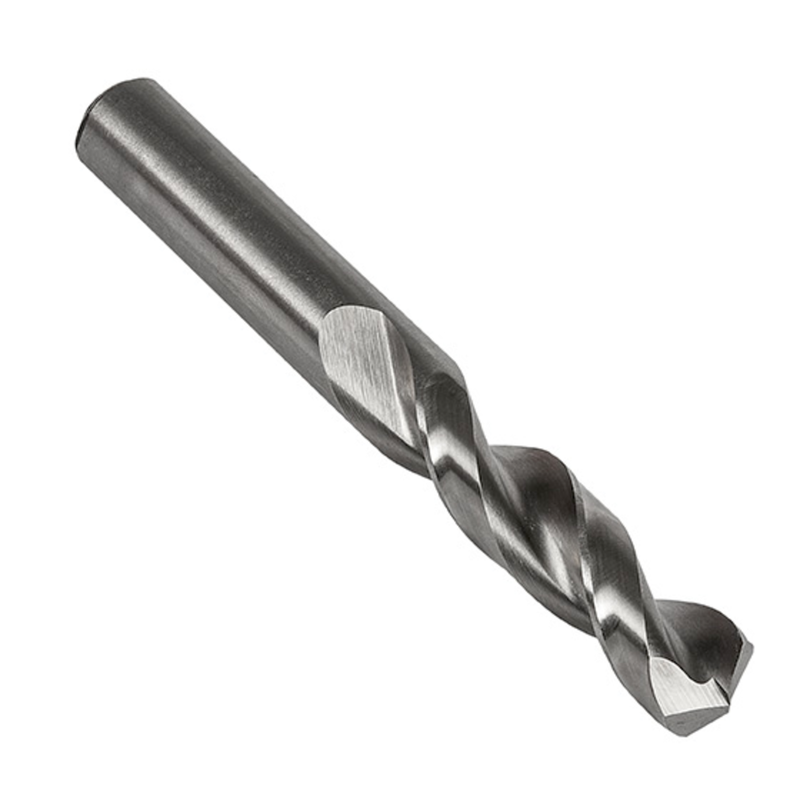

Foret court à queue cylindrique, diamètre 0,1065" (N36) avec une longueur totale de 1.13/16" et une longueur de goujure de 13/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition brillante et âme parabolique pour un perçage 3xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41PN36
GradeLumineux
Product Number5997226
Product FamilyQC41P
Dimensions
Cutting Diameter — in (DC)0.1065"
Cutting Diameter — mm (DC)2.71 mm
Overall Length — in (OAL)1.8125"
Overall Length — mm (OAL)46.04 mm
Flute Length — in (LCF)0.8125"
Flute Length — mm (LCF)20.64 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1065"
Connection Dia. — mm (DCON)2.71 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60036
File Type Download
QC41PN36 — 3D Model STP Download
QC41PN36 — Line Drawing PDF Download
