QC91P25/64
QC91P25/64
QC91P25/64

QC91P25/64

UGC PRE5997232
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.86 CAD - $32.86 CAD
$32.86 CAD
$32.86 CAD - $32.86 CAD
$32.86 CAD

Vendu en lots de : 6

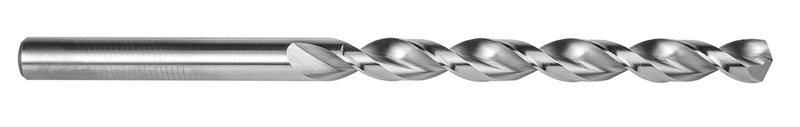

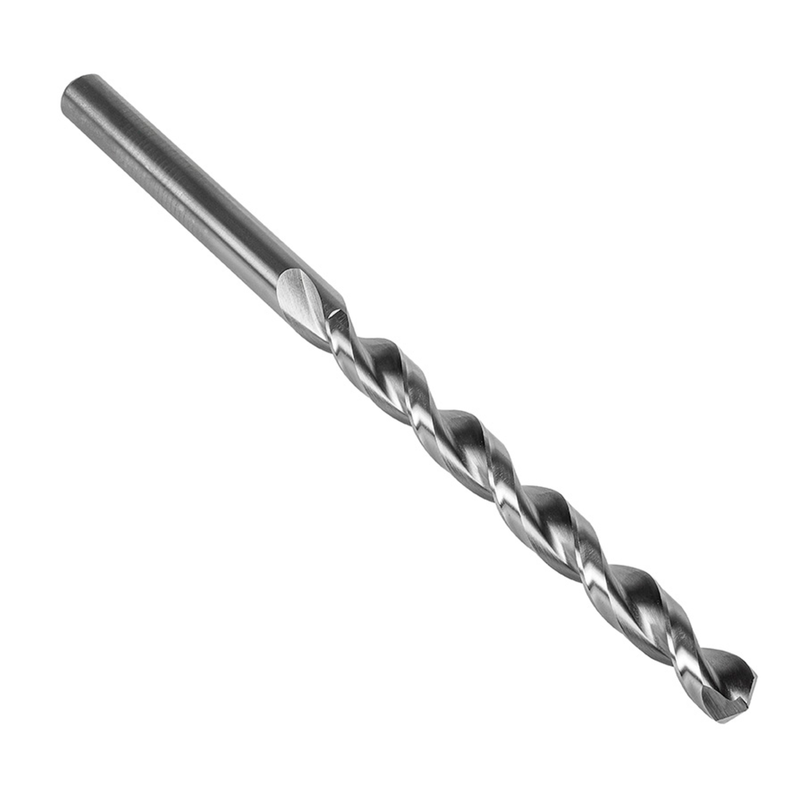

Foret série longue, à queue cylindrique, diamètre 0,3906" (25/64) avec une longueur totale de 7" et une longueur de coupe de 4.3/8" selon la norme ANSI, avec pointe autocentrante 135°, en acier rapide (HSS) avec finition brillante et âme parabolique pour perçage 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC91P25/64
GradeLumineux
Product Number5997232
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.3906"
Cutting Diameter — mm (DC)9.92 mm
Cutting Diameter — Fractional25/64
Overall Length — in (OAL)7.0"
Overall Length — mm (OAL)177.8 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.3906"
Connection Dia. — mm (DCON)9.92 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number57925
File Type Download
QC91P25/64 — 3D Model STP Download
QC91P25/64 — Line Drawing PDF Download
