CQ41PN11
CQ41PN11
CQ41PN11

CQ41PN11

UGC PRE5997247
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.07 CAD - $5.07 CAD
$5.07 CAD
$5.07 CAD - $5.07 CAD
$5.07 CAD

Vendu en lots de : 12

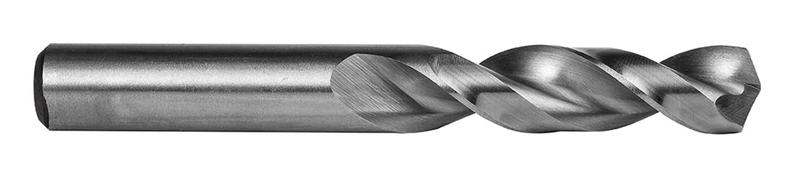

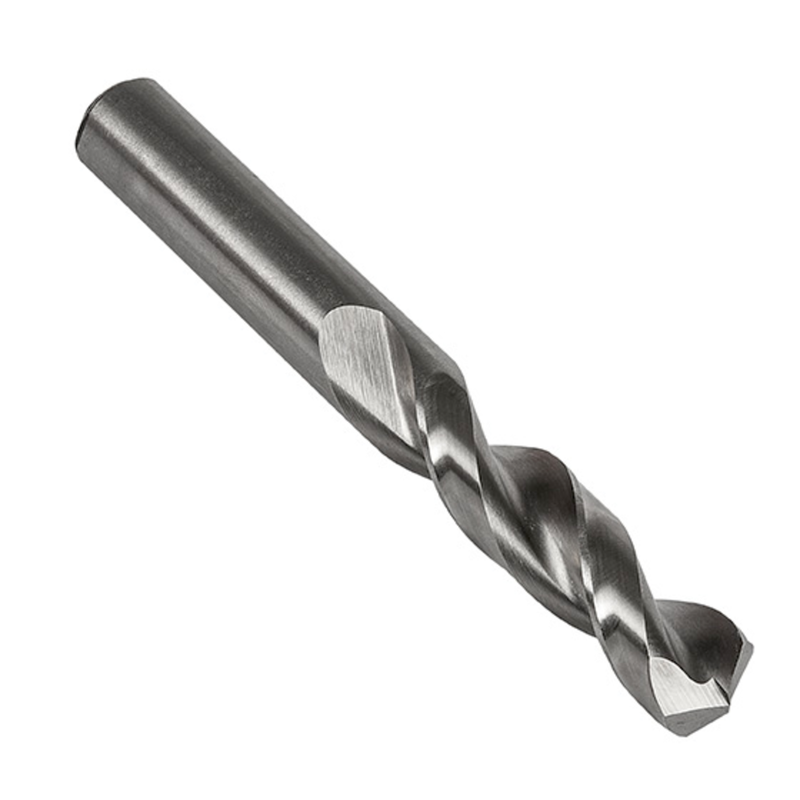

Foret court à queue droite, diamètre 0,1910" (N11) avec une longueur totale de 2.1/4" et une longueur de coupe de 1.3/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition brillante et âme parabolique pour un perçage 3xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41PN11
GradeLumineux
Product Number5997247
Product FamilyCQ41P
Dimensions
Cutting Diameter — in (DC)0.191"
Cutting Diameter — mm (DC)4.85 mm
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.191"
Connection Dia. — mm (DCON)4.85 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60011
File Type Download
CQ41PN11 — 3D Model STP Download
CQ41PN11 — Line Drawing PDF Download
