QC91P5/32
QC91P5/32
QC91P5/32

QC91P5/32

UGC PRE5997421
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.50 CAD - $15.50 CAD
$15.50 CAD
$15.50 CAD - $15.50 CAD
$15.50 CAD

Vendu en lots de : 12

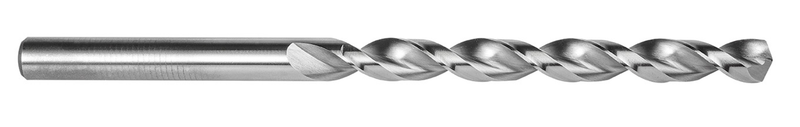

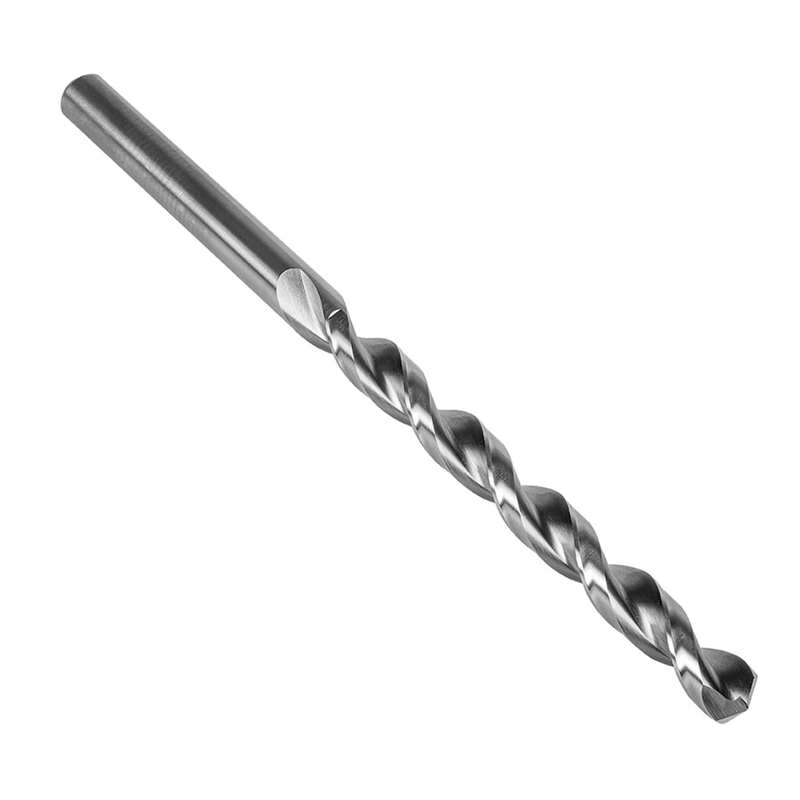

Foret série longue, à queue droite, diamètre 0,1563" (5/32), longueur totale 5,3/8", longueur de la partie coupante 3" selon la norme ANSI, pointe fendue à 135°, HSS, finition brillante, goujure parabolique pour le perçage de 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC91P5/32
GradeLumineux
Product Number5997421
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)5.375"
Overall Length — mm (OAL)136.53 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number57910
File Type Download
QC91P5/32 — 3D Model STP Download
QC91P5/32 — Line Drawing PDF Download
