R18CON1
R18CON1

R18CON1

UGC PRE5997674
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.79 CAD - $7.79 CAD
$7.79 CAD
$7.79 CAD - $7.79 CAD
$7.79 CAD

Vendu en lots de : 12

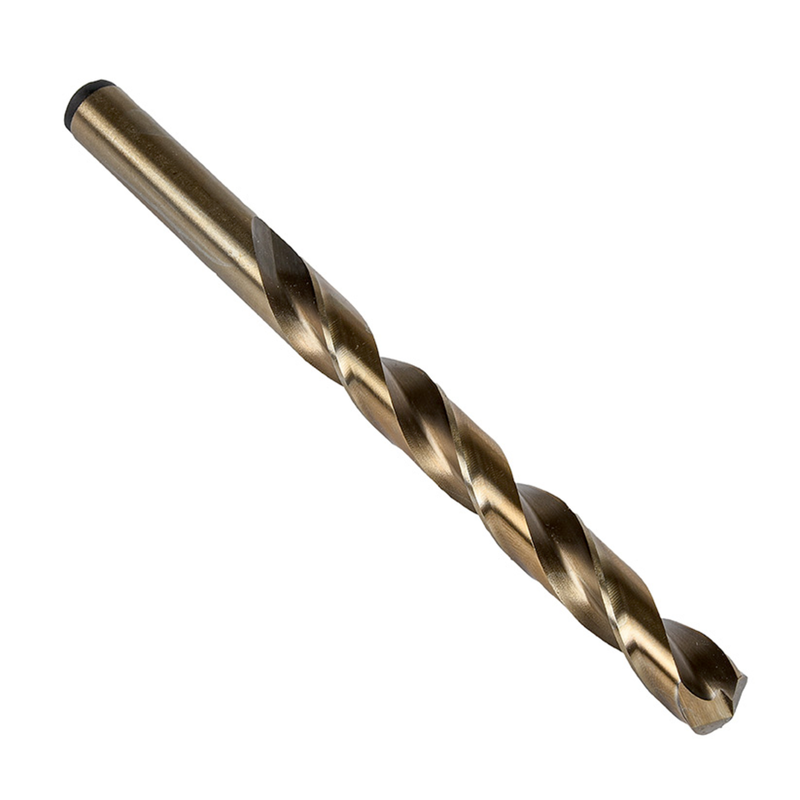

Foret court avec queue cylindrique, diamètre 0,2280" (N1) avec une longueur totale de 3,7/8" et une longueur de goujure de 2,5/8" selon la norme NAS907 Type J avec une pointe fendue à 135° pour usage intensif, HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18CON1
GradeBronze
Product Number5997674
Product FamilyR18CO
Dimensions
Cutting Diameter — in (DC)0.228"
Cutting Diameter — mm (DC)5.79 mm
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.228"
Connection Dia. — mm (DCON)5.79 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number18301
File Type Download
R18CON1 — 3D Model STP Download
R18CON1 — Line Drawing PDF Download
