QC41P23/64
QC41P23/64
QC41P23/64

QC41P23/64

UGC PRE5997707
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.37 CAD - $13.37 CAD
$13.37 CAD
$13.37 CAD - $13.37 CAD
$13.37 CAD

Vendu en lots de : 6

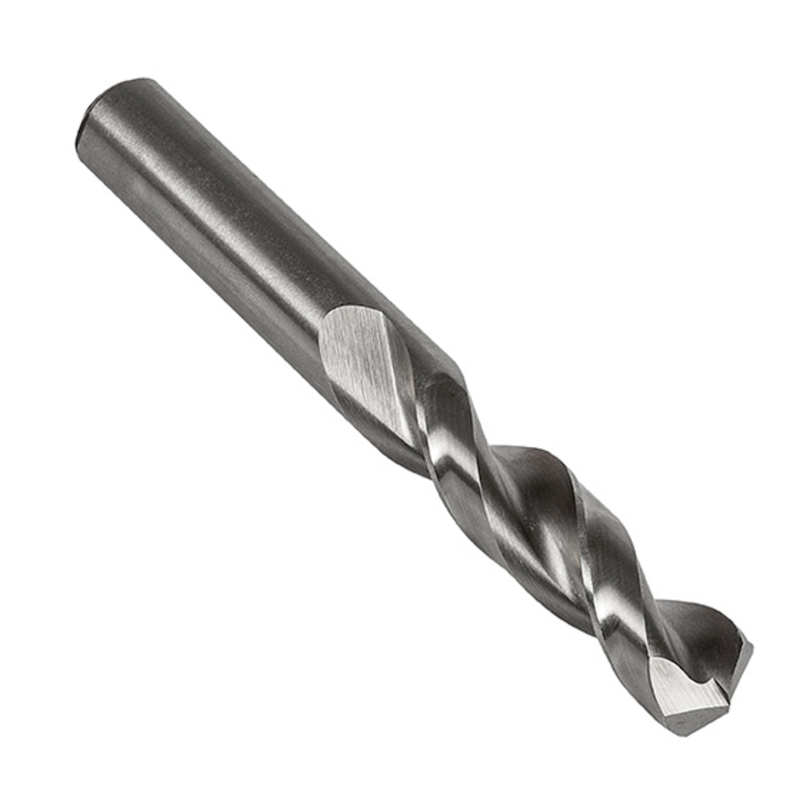

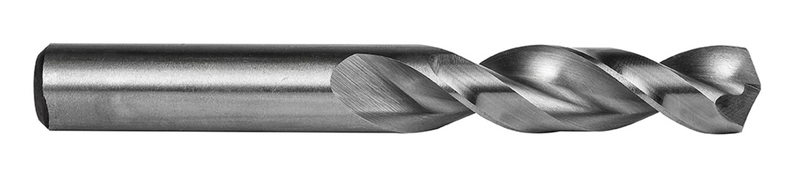

Foret court à queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 3.1/16" et une longueur de coupe de 1.3/4" selon la norme ANSI, avec pointe en croix 135°, HSS finition brillante et âme parabolique pour perçage 3xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41P23/64
GradeLumineux
Product Number5997707
Product FamilyQC41P
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)3.0625"
Overall Length — mm (OAL)77.79 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number58323
File Type Download
QC41P23/64 — 3D Model STP Download
QC41P23/64 — Line Drawing PDF Download
