R18CON20
R18CON20

R18CON20

UGC PRE5997711
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.37 CAD - $4.37 CAD
$4.37 CAD
$4.37 CAD - $4.37 CAD
$4.37 CAD

Vendu en lots de : 12

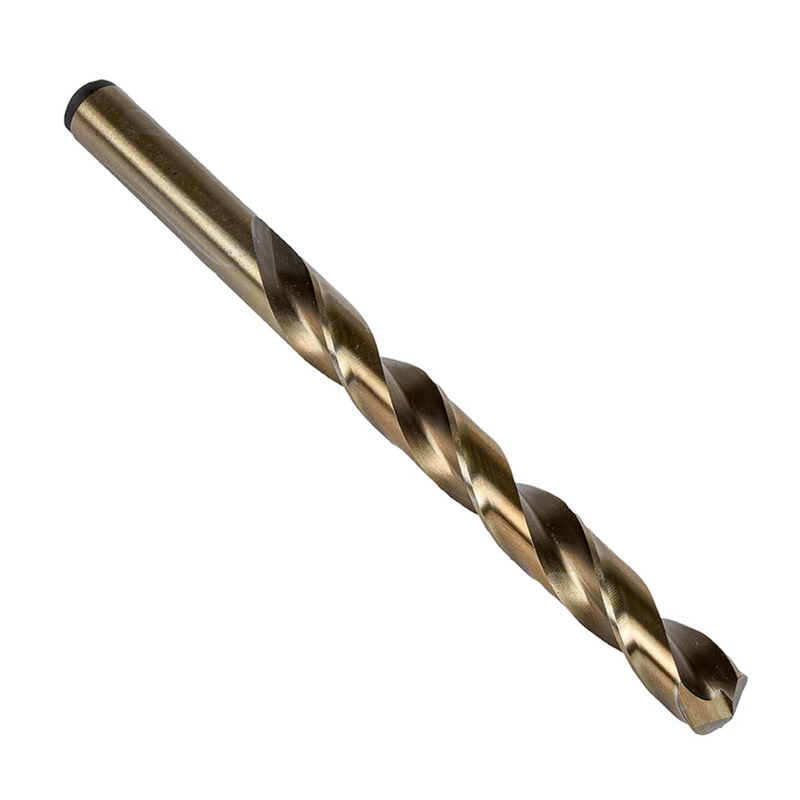

Foret court avec queue cylindrique, diamètre 0,1610" (N20), longueur totale 3,1/4" et longueur de coupe 2,1/8" selon la norme NAS907 Type J, avec pointe hélicoïdale fendue robuste à 135°, HSS-E cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18CON20
GradeBronze
Product Number5997711
Product FamilyR18CO
Dimensions
Cutting Diameter — in (DC)0.161"
Cutting Diameter — mm (DC)4.09 mm
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.161"
Connection Dia. — mm (DCON)4.09 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number18320
File Type Download
R18CON20 — 3D Model STP Download
R18CON20 — Line Drawing PDF Download
