R18CON3
R18CON3

R18CON3

UGC PRE5997733
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.23 CAD - $7.23 CAD
$7.23 CAD
$7.23 CAD - $7.23 CAD
$7.23 CAD

Vendu en lots de : 12

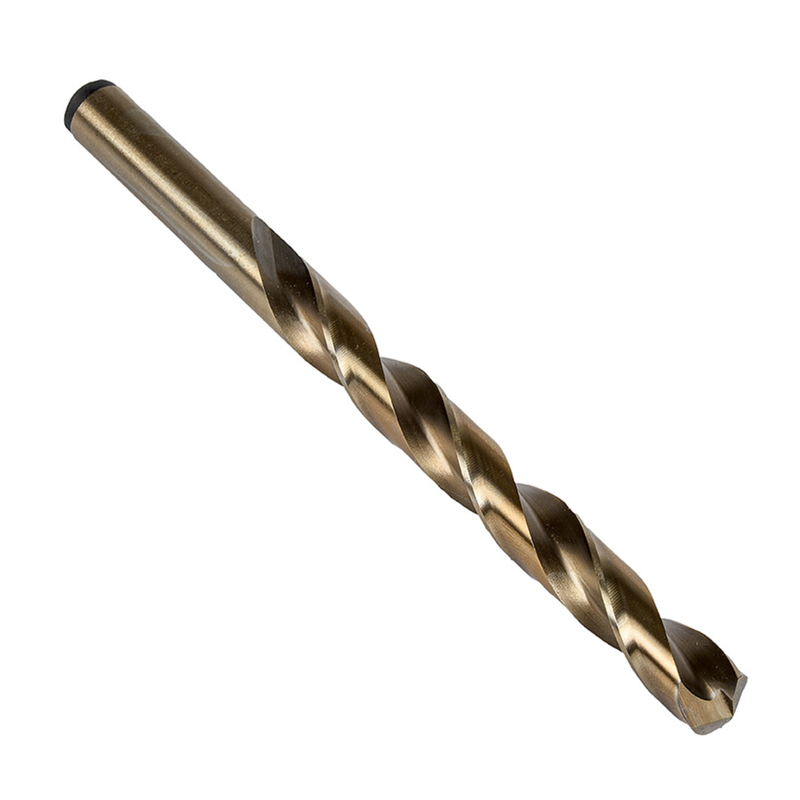

Foret hélicoïdal de longueur normale à queue cylindrique, diamètre 0,2130" (N3) avec une longueur totale de 3,3/4" et une longueur de coupe de 2,1/2" selon la norme NAS907 Type J avec pointe auto-centrante renforcée à 135°, en HSS-E cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18CON3
GradeBronze
Product Number5997733
Product FamilyR18CO
Dimensions
Cutting Diameter — in (DC)0.213"
Cutting Diameter — mm (DC)5.41 mm
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.213"
Connection Dia. — mm (DCON)5.41 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number18303
File Type Download
R18CON3 — 3D Model STP Download
R18CON3 — Line Drawing PDF Download
