UGC PRE5997964
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.07 CAD - $20.07 CAD
$20.07 CAD
$20.07 CAD - $20.07 CAD
$20.07 CAD

Vendu en lots de : 12

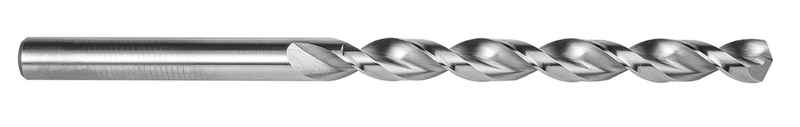

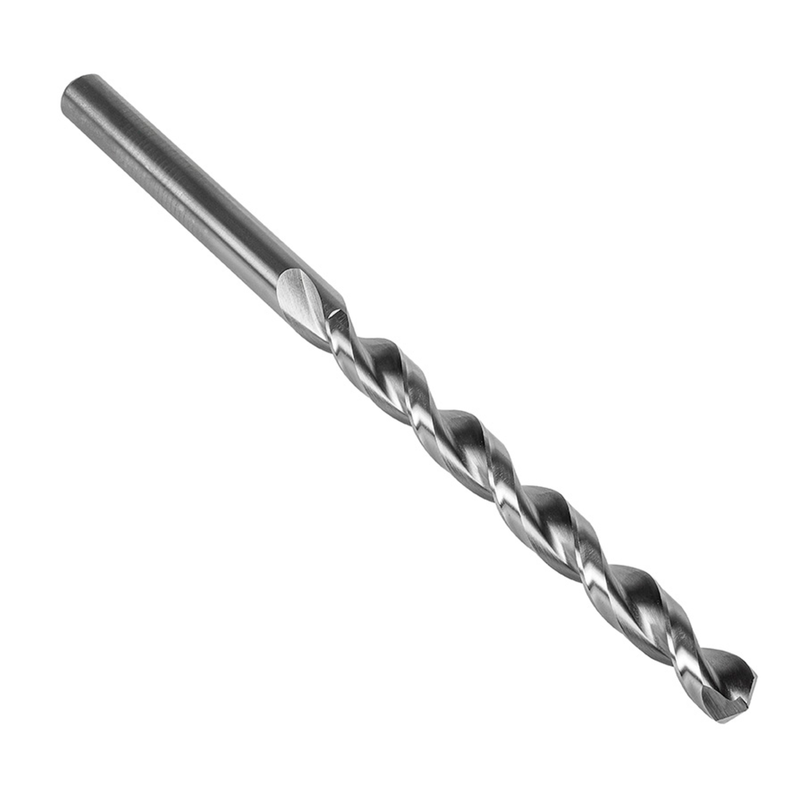

Foret série longue avec queue cylindrique, diamètre 0,1935" (N10) avec une longueur totale de 6" et une longueur de coupe de 3.5/8" selon la norme ANSI avec un affûtage en croix de 135°, HSS avec finition brillante et âme parabolique pour un perçage 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC91PN10
GradeLumineux
Product Number5997964
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59410
File Type Download
QC91PN10 — 3D Model STP Download
QC91PN10 — Line Drawing PDF Download
