CQ91PN12
CQ91PN12
CQ91PN12

CQ91PN12

UGC PRE5997968
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.07 CAD - $20.07 CAD
$20.07 CAD
$20.07 CAD - $20.07 CAD
$20.07 CAD

Vendu en lots de : 12

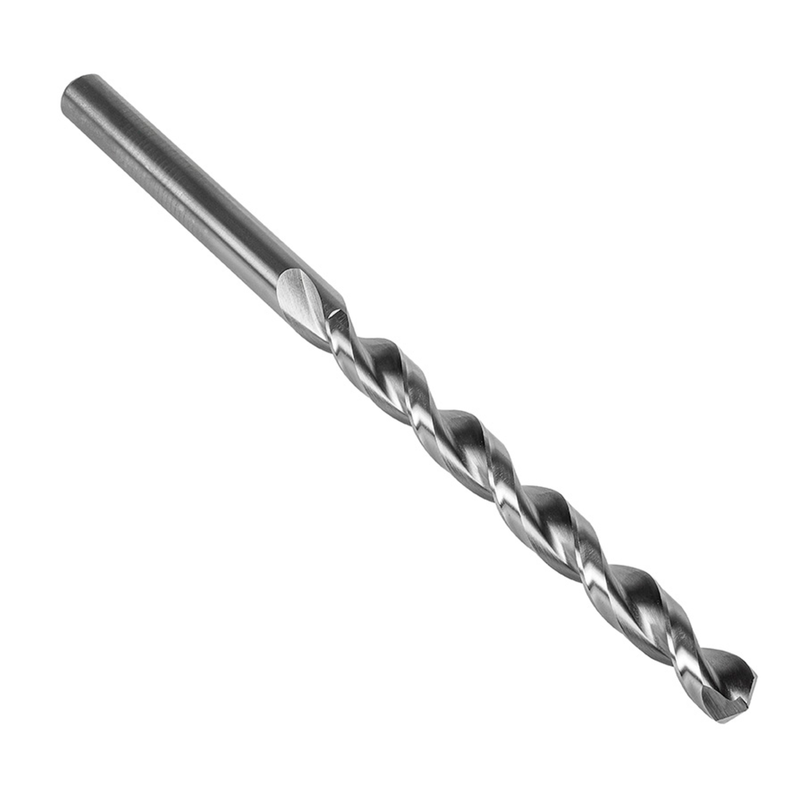

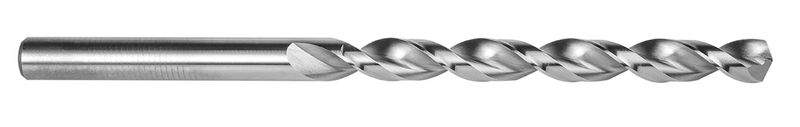

Foret série longue, à queue cylindrique, diamètre 0,1890" (N12) avec une longueur totale de 6" et une longueur de coupe de 3.5/8" selon la norme ANSI avec une pointe à 135° auto-centrante, en acier rapide HSS avec finition brillante et hélice parabolique pour un perçage 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ91PN12
Product Name (ISO)QC91PN12
GradeLumineux
Product Number5997968
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.189"
Cutting Diameter — mm (DC)4.8 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.189"
Connection Dia. — mm (DCON)4.8 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59412
File Type Download
CQ91PN12 — 3D Model STP Download
CQ91PN12 — Line Drawing PDF Download
