UGC PRE5997979
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.26 CAD - $19.26 CAD
$19.26 CAD
$19.26 CAD - $19.26 CAD
$19.26 CAD

Vendu en lots de : 12

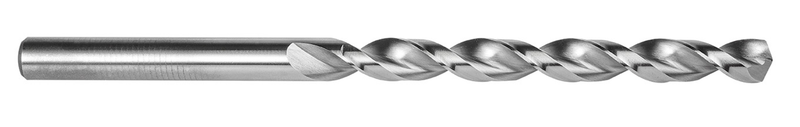

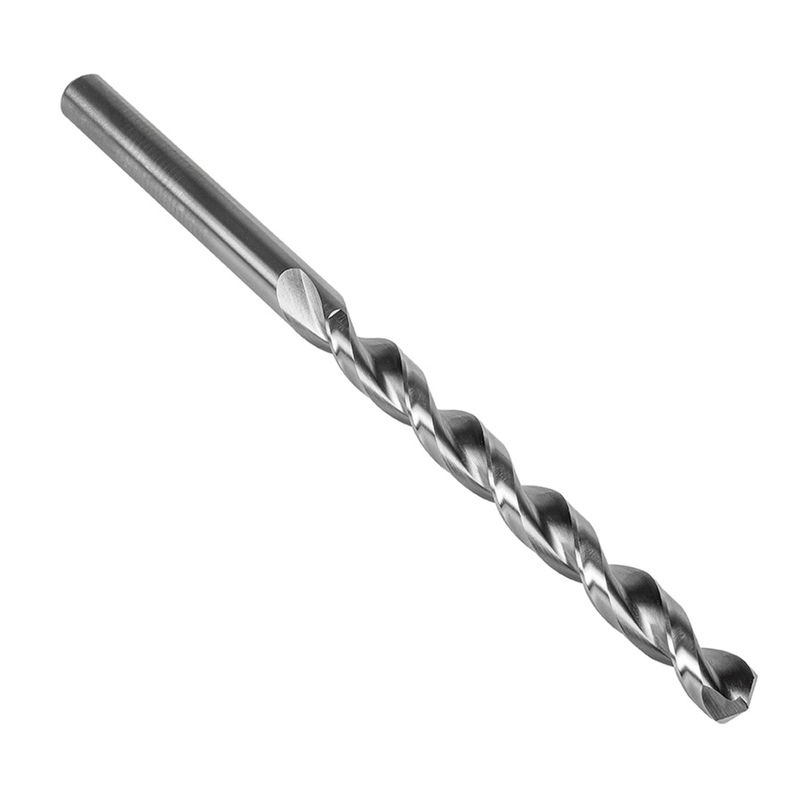

Foret long à queue cylindrique, diamètre 0,1770" (N16) avec une longueur totale de 5,3/4" et une longueur de coupe de 3,3/8" selon la norme ANSI avec une pointe à affûtage en croix de 135°, en HSS avec finition brillante et âme parabolique pour perçage 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ91GN16
Product Name (ISO)CQ91PN16
GradeLumineux
Product Number5997979
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59416
File Type Download
CQ91PN16 — 3D Model STP Download
CQ91PN16 — Line Drawing PDF Download
