QC91PN19
QC91PN19
QC91PN19

QC91PN19

UGC PRE5997989
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.19 CAD - $18.19 CAD
$18.19 CAD
$18.19 CAD - $18.19 CAD
$18.19 CAD

Vendu en lots de : 12

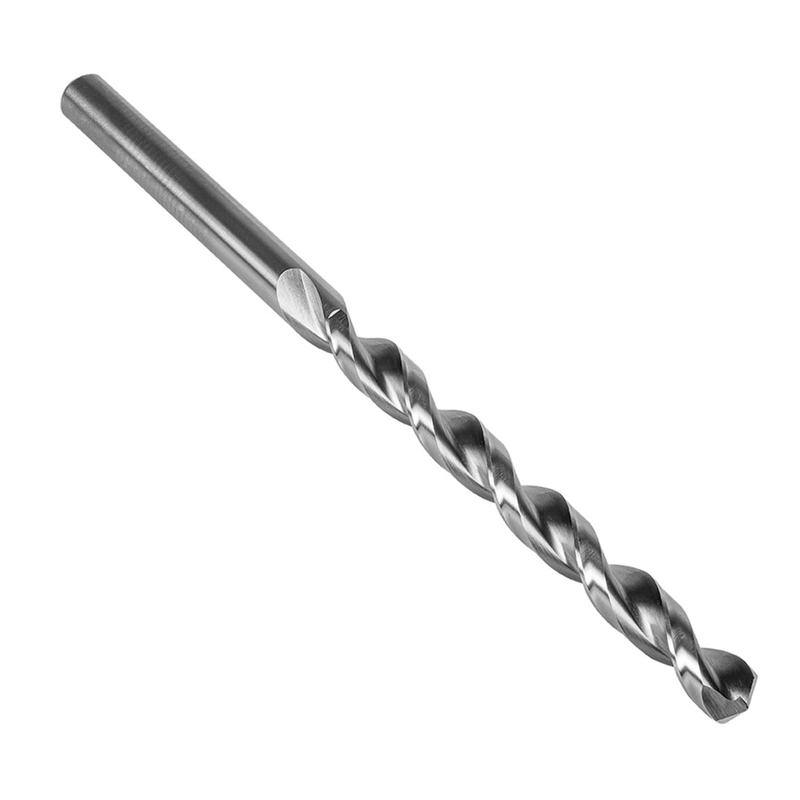

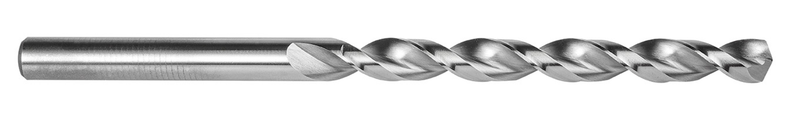

Foret de série longue à queue cylindrique, diamètre 0,1660" (N19) avec une longueur totale de 5,3/4" et une longueur de coupe de 3,3/8" selon la norme ANSI avec une pointe fendue de 135°, en HSS avec finition brillante et âme parabolique pour perçage 6xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)QC91PN19
Product Name (ISO)CQ91PN19
GradeLumineux
Product Number5997989
Product FamilyQC91P
Dimensions
Cutting Diameter — in (DC)0.166"
Cutting Diameter — mm (DC)4.22 mm
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.166"
Connection Dia. — mm (DCON)4.22 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number59419
File Type Download
QC91PN19 — 3D Model STP Download
QC91PN19 — Line Drawing PDF Download
