R18HN5
R18HN5

R18HN5

UGC PRE5998019
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.73 CAD - $5.73 CAD
$5.73 CAD
$5.73 CAD - $5.73 CAD
$5.73 CAD

Vendu en lots de : 12

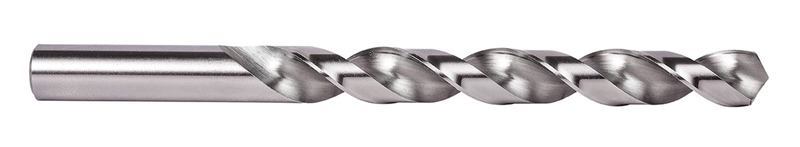

Foret court avec queue cylindrique, diamètre 0,2055" (N5) avec une longueur totale de 3,3/4" et une longueur de goujure de 2,1/2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage à 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18HN5
GradeLumineux
Product Number5998019
Product FamilyR18H
Dimensions
Cutting Diameter — in (DC)0.2055"
Cutting Diameter — mm (DC)5.22 mm
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2055"
Connection Dia. — mm (DCON)5.22 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18505
File Type Download
R18HN5 — 3D Model STP Download
R18HN5 — Line Drawing PDF Download
