R10CO3/64
R10CO3/64
R10CO3/64

R10CO3/64

UGC PRE5998182
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.10 CAD - $3.10 CAD
$3.10 CAD
$3.10 CAD - $3.10 CAD
$3.10 CAD

Vendu en lots de : 12

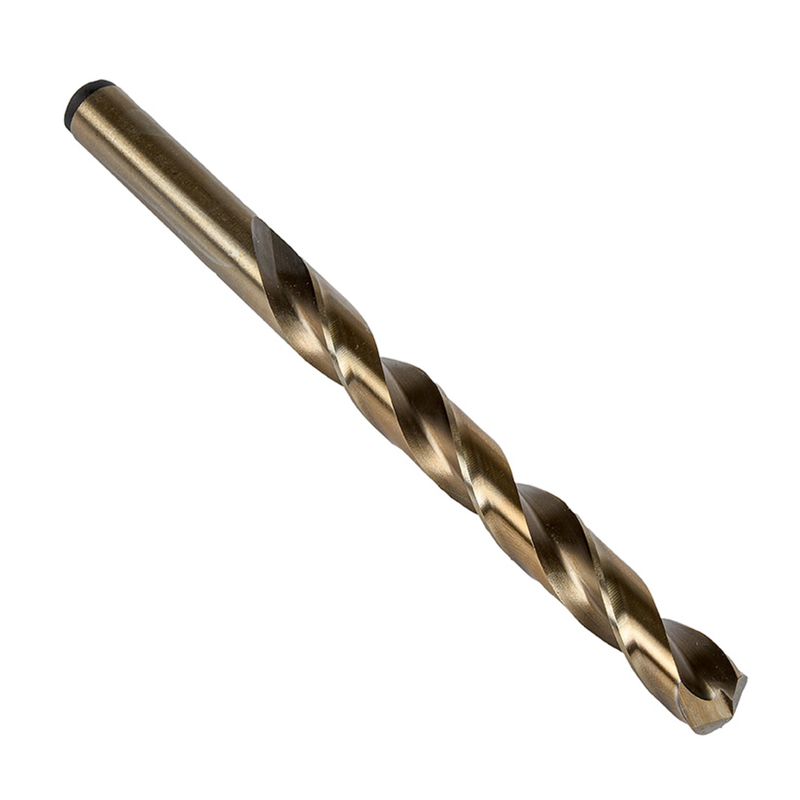

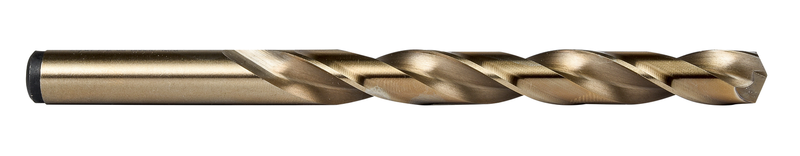

Foret de longueur jobber à queue cylindrique, diamètre 0,0469" (3/64) avec une longueur totale de 1,3/4" et une longueur de goujure de 3/4" selon la norme NAS907 Type J avec pointe auto-centrante renforcée à 135°, HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10CO3/64
GradeBronze
Product Number5998182
Product FamilyR10CO
Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0469"
Connection Dia. — mm (DCON)1.19 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number10303
File Type Download
R10CO3/64 — 3D Model STP Download
R10CO3/64 — Line Drawing PDF Download
