R10CO9/64
R10CO9/64
R10CO9/64

R10CO9/64

UGC PRE5998234
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.66 CAD - $3.66 CAD
$3.66 CAD
$3.66 CAD - $3.66 CAD
$3.66 CAD

Vendu en lots de : 12

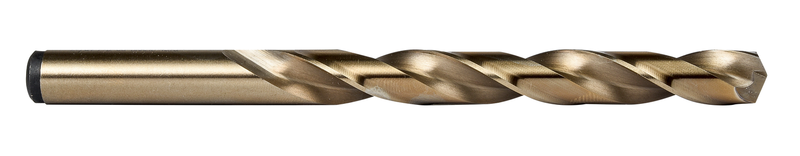

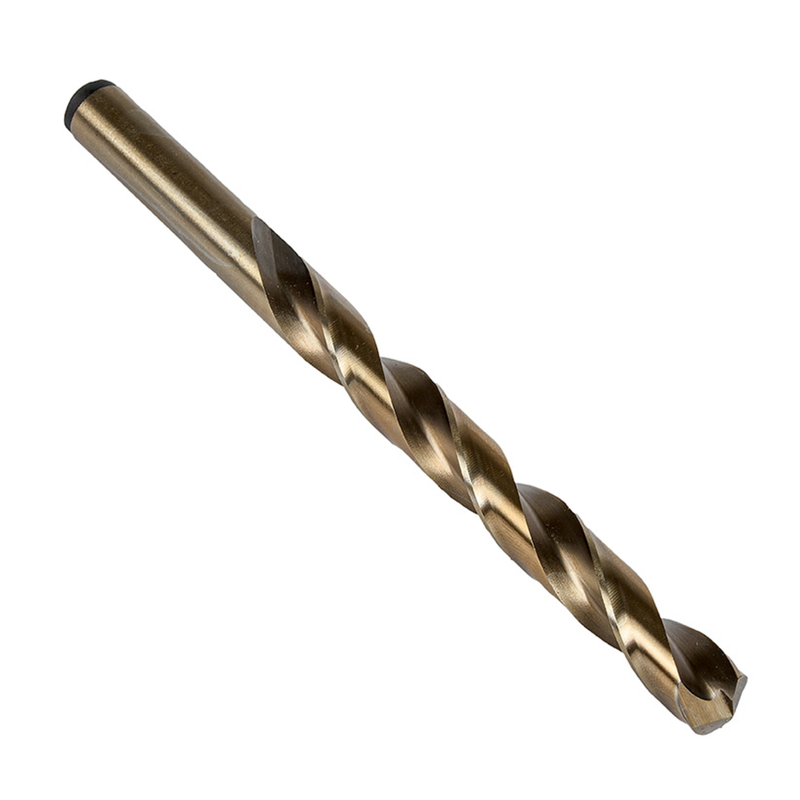

Foret court avec queue cylindrique, diamètre 0,1406" (9/64) avec une longueur totale de 2,7/8" et une longueur de coupe de 1,3/4" selon la norme NAS907 Type J avec pointe de centrage 135° renforcée, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10CO9/64
GradeBronze
Product Number5998234
Product FamilyR10CO
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)2.875"
Overall Length — mm (OAL)73.03 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1406"
Connection Dia. — mm (DCON)3.57 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number10309
File Type Download
R10CO9/64 — 3D Model STP Download
R10CO9/64 — Line Drawing PDF Download
