R18HN23
R18HN23

R18HN23

UGC PRE5998239
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.26 CAD - $3.26 CAD
$3.26 CAD
$3.26 CAD - $3.26 CAD
$3.26 CAD

Vendu en lots de : 12

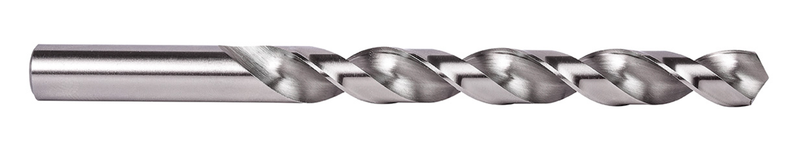

Foret court avec queue cylindrique, diamètre 0,1540" (N23) d'une longueur totale de 3,1/8" et d'une longueur de goujure de 2" selon la norme ANSI, avec angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18HN23
GradeLumineux
Product Number5998239
Product FamilyR18H
Dimensions
Cutting Diameter — in (DC)0.154"
Cutting Diameter — mm (DC)3.91 mm
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.154"
Connection Dia. — mm (DCON)3.91 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18523
File Type Download
R18HN23 — 3D Model STP Download
R18HN23 — Line Drawing PDF Download
