R18HN24
R18HN24

R18HN24

UGC PRE5998242
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.10 CAD - $3.10 CAD
$3.10 CAD
$3.10 CAD - $3.10 CAD
$3.10 CAD

Vendu en lots de : 12

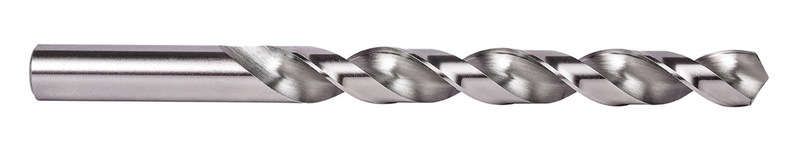

Foret série courte à queue cylindrique, diamètre 0,1520" (N24) avec une longueur totale de 3.1/8" et une longueur de coupe de 2" selon la norme ANSI, angle de pointe de 118°, en HSS, finition brillante pour perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18HN24
GradeLumineux
Product Number5998242
Product FamilyR18H
Dimensions
Cutting Diameter — in (DC)0.152"
Cutting Diameter — mm (DC)3.86 mm
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.152"
Connection Dia. — mm (DCON)3.86 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18524
File Type Download
R18HN24 — 3D Model STP Download
R18HN24 — Line Drawing PDF Download
