R18N16
R18N16

R18N16

UGC PRE5998309
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.90 CAD - $2.90 CAD
$2.90 CAD
$2.90 CAD - $2.90 CAD
$2.90 CAD

Vendu en lots de : 12

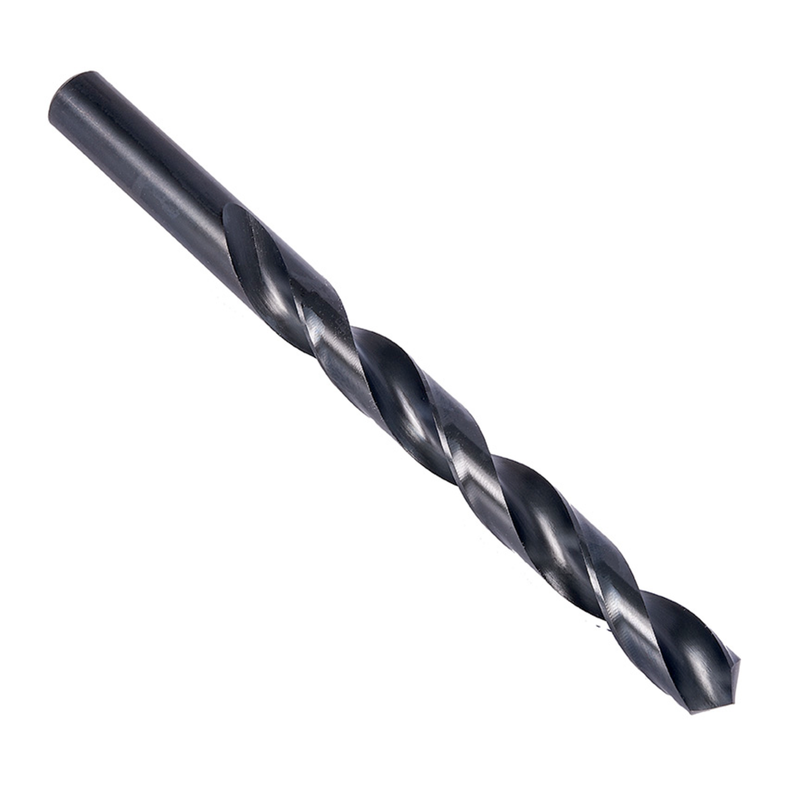

Foret de longueur jobber à queue cylindrique, diamètre 0,1770" (N16) avec une longueur totale de 3.3/8" et une longueur de goujure de 2.3/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18N16
GradeTrempé à la vapeur
Product Number5998309
Product FamilyR18
Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18016
File Type Download
R18N16 — 3D Model STP Download
R18N16 — Line Drawing PDF Download
