R18N23
R18N23

R18N23

UGC PRE5998336
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.23 CAD - $2.23 CAD
$2.23 CAD
$2.23 CAD - $2.23 CAD
$2.23 CAD

Vendu en lots de : 12

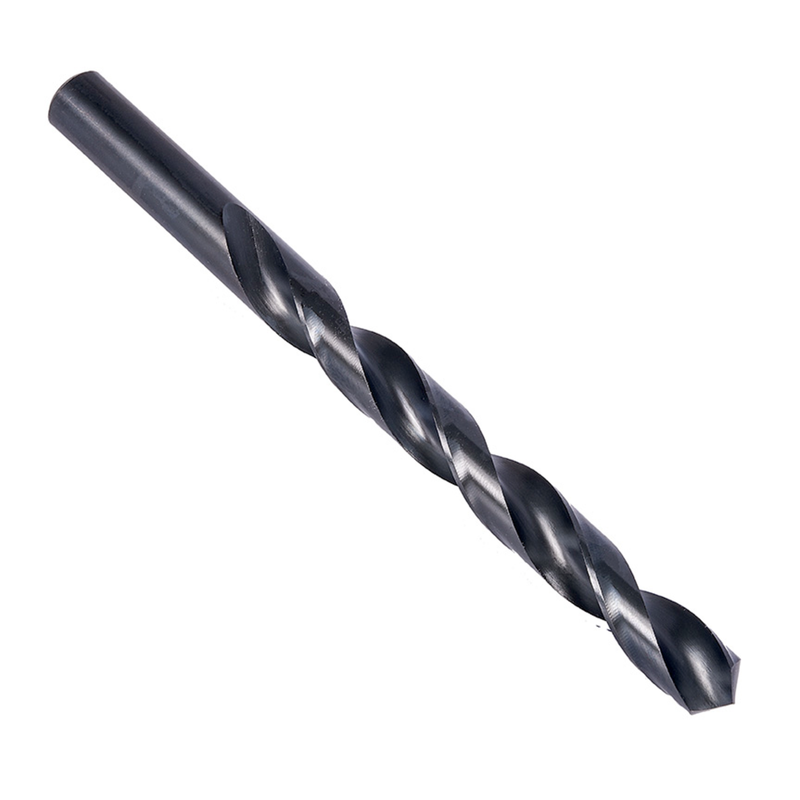

Forets courts à queue cylindrique, diamètre 0,1540" (N23) d'une longueur totale de 3.1/8" et d'une longueur de goujure de 2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempe vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18N23
GradeTrempé à la vapeur
Product Number5998336
Product FamilyR18
Dimensions
Cutting Diameter — in (DC)0.154"
Cutting Diameter — mm (DC)3.91 mm
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.154"
Connection Dia. — mm (DCON)3.91 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18023
File Type Download
R18N23 — 3D Model STP Download
R18N23 — Line Drawing PDF Download
