R10H1/8
R10H1/8
R10H1/8

R10H1/8

UGC PRE5998358
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.93 CAD - $2.93 CAD
$2.93 CAD
$2.93 CAD - $2.93 CAD
$2.93 CAD

Vendu en lots de : 12

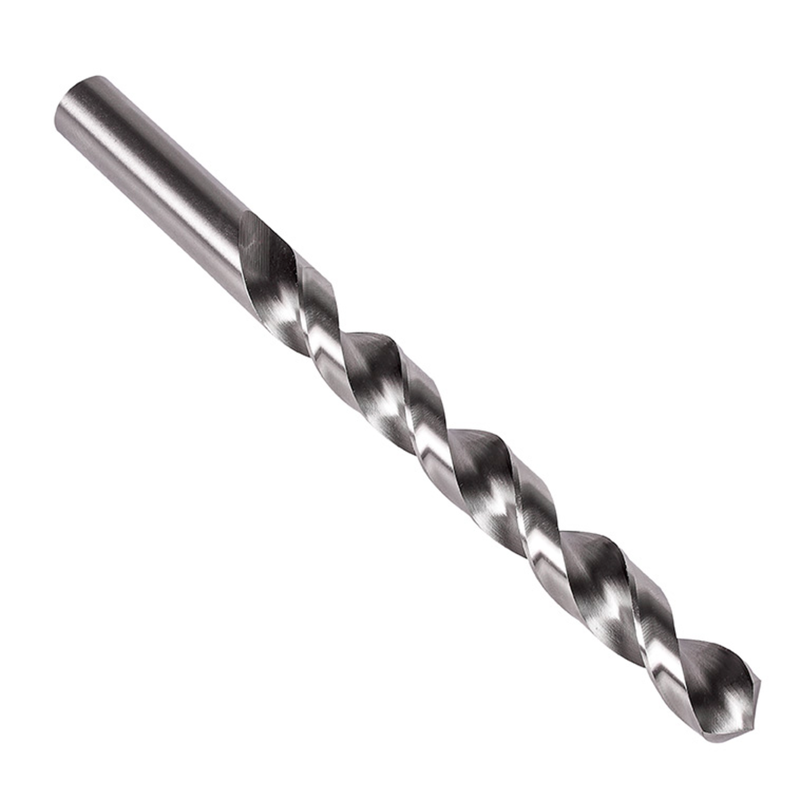

Foret court avec queue cylindrique, diamètre 0,1250" (1/8) avec une longueur totale de 2,3/4" et une longueur de coupe de 1,5/8" selon la norme ANSI avec un angle de pointe de 118°, en acier rapide avec finition brillante pour un perçage 4xD sans débourrage dans des matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10H1/8
GradeLumineux
Product Number5998358
Product FamilyR10H
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10508
File Type Download
R10H1/8 — 3D Model STP Download
R10H1/8 — Line Drawing PDF Download
