R10H11/32
R10H11/32
R10H11/32

R10H11/32

UGC PRE5998361
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.27 CAD - $11.27 CAD
$11.27 CAD
$11.27 CAD - $11.27 CAD
$11.27 CAD

Vendu en lots de : 6

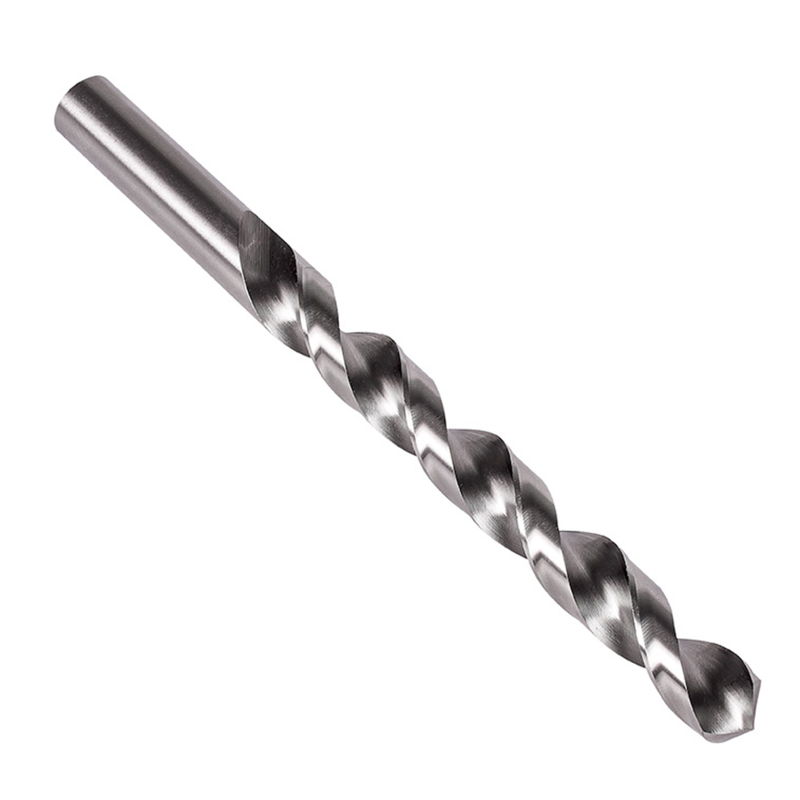

Foret jobber à queue cylindrique, diamètre 0,3438" (11/32) avec une longueur totale de 4,3/4" et une longueur de coupe de 3,7/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10H11/32
GradeLumineux
Product Number5998361
Product FamilyR10H
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)4.75"
Overall Length — mm (OAL)120.65 mm
Flute Length — in (LCF)3.4375"
Flute Length — mm (LCF)87.31 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10522
File Type Download
R10H11/32 — 3D Model STP Download
R10H11/32 — Line Drawing PDF Download
