R10H29/64
R10H29/64
R10H29/64

R10H29/64

UGC PRE5998374
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.46 CAD - $20.46 CAD
$20.46 CAD
$20.46 CAD - $20.46 CAD
$20.46 CAD

Vendu en lots de : 6

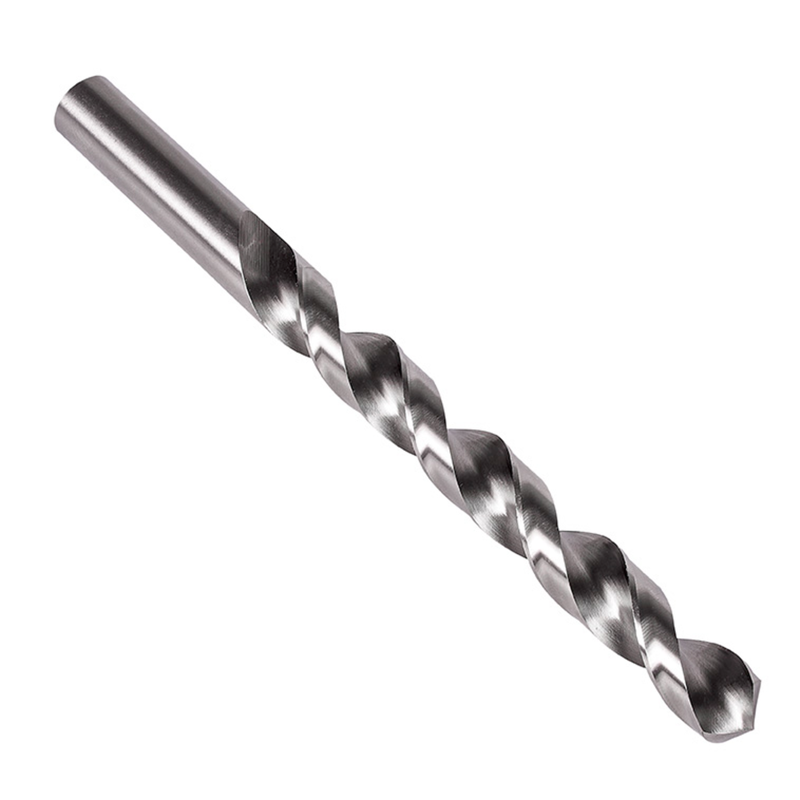

Foret série courte à queue cylindrique, diamètre 0,4531" (29/64) avec une longueur totale de 5.5/8" et une longueur de coupe de 4.3/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS poli pour le perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10H29/64
GradeLumineux
Product Number5998374
Product FamilyR10H
Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)5.625"
Overall Length — mm (OAL)142.88 mm
Flute Length — in (LCF)4.1875"
Flute Length — mm (LCF)106.36 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4531"
Connection Dia. — mm (DCON)11.51 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10529
File Type Download
R10H29/64 — 3D Model STP Download
R10H29/64 — Line Drawing PDF Download
