R18N37
R18N37

R18N37

UGC PRE5998389
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.93 CAD - $1.93 CAD
$1.93 CAD
$1.93 CAD - $1.93 CAD
$1.93 CAD

Vendu en lots de : 12

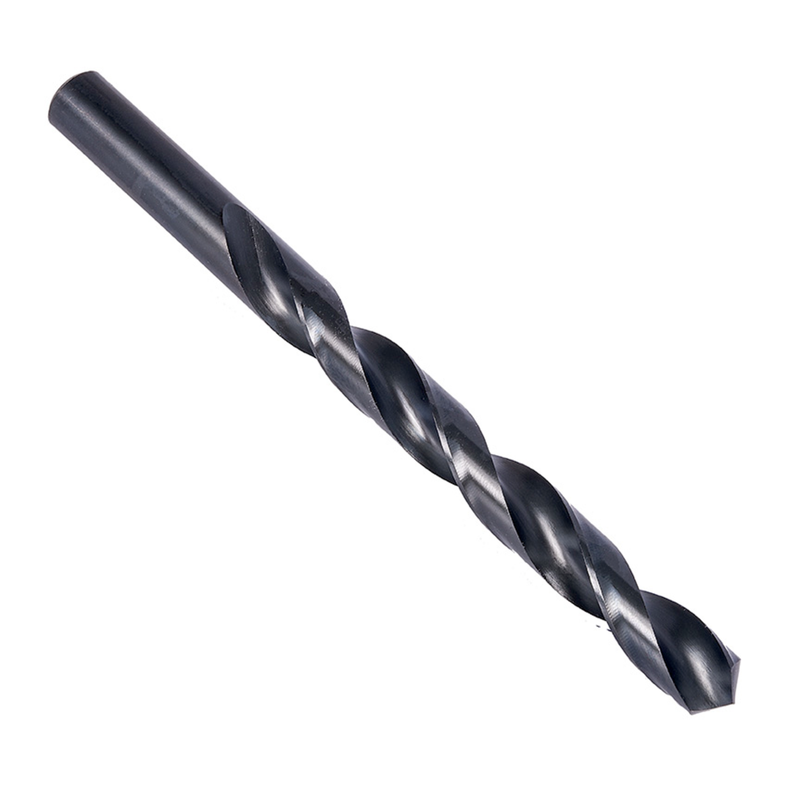

Foret de longueur jobber avec queue droite, diamètre 0,1040" (N37) avec une longueur totale de 2,1/2" et une longueur de goujure de 1,7/16" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18N37
GradeTrempé à la vapeur
Product Number5998389
Product FamilyR18
Dimensions
Cutting Diameter — in (DC)0.104"
Cutting Diameter — mm (DC)2.64 mm
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.104"
Connection Dia. — mm (DCON)2.64 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18037
File Type Download
R18N37 — 3D Model STP Download
R18N37 — Line Drawing PDF Download
