R10H31/64
R10H31/64
R10H31/64

R10H31/64

UGC PRE5998394
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.99 CAD - $22.99 CAD
$22.99 CAD
$22.99 CAD - $22.99 CAD
$22.99 CAD

Vendu en lots de : 6

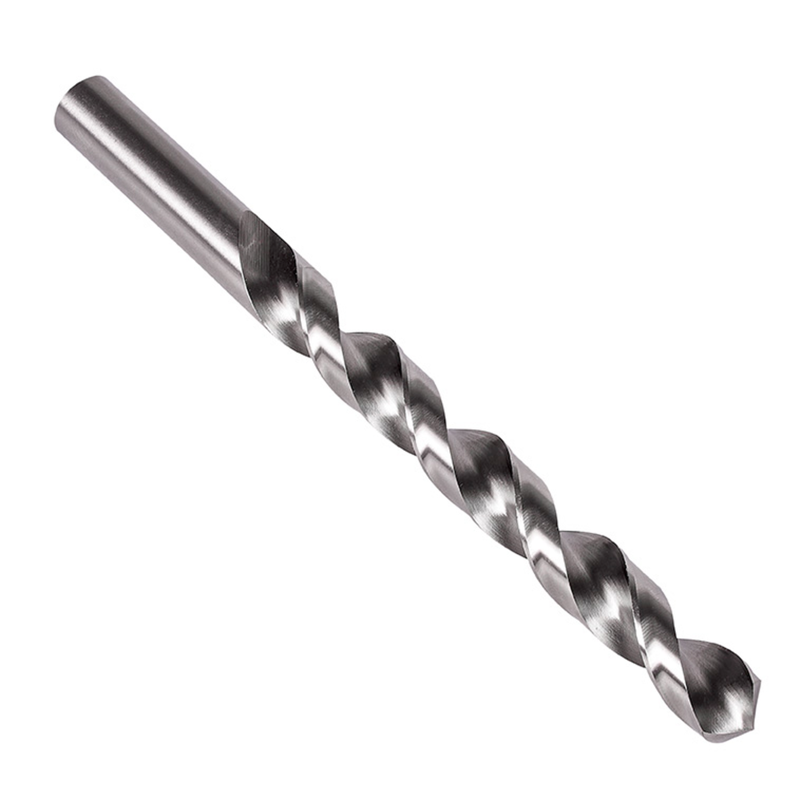

Foret court à queue cylindrique, diamètre 0,4844" (31/64) avec une longueur totale de 5.7/8" et une longueur de goujure de 4.3/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour le perçage de 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10H31/64
GradeLumineux
Product Number5998394
Product FamilyR10H
Dimensions
Cutting Diameter — in (DC)0.4844"
Cutting Diameter — mm (DC)12.3 mm
Cutting Diameter — Fractional31/64
Overall Length — in (OAL)5.875"
Overall Length — mm (OAL)149.23 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4844"
Connection Dia. — mm (DCON)12.3 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10531
File Type Download
R10H31/64 — 3D Model STP Download
R10H31/64 — Line Drawing PDF Download
